Product Details

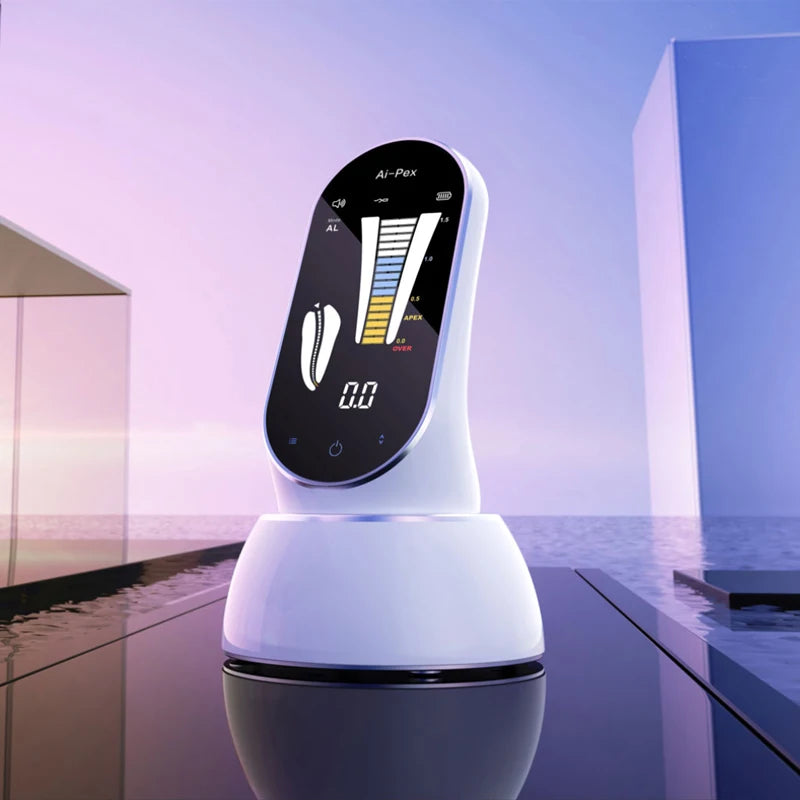

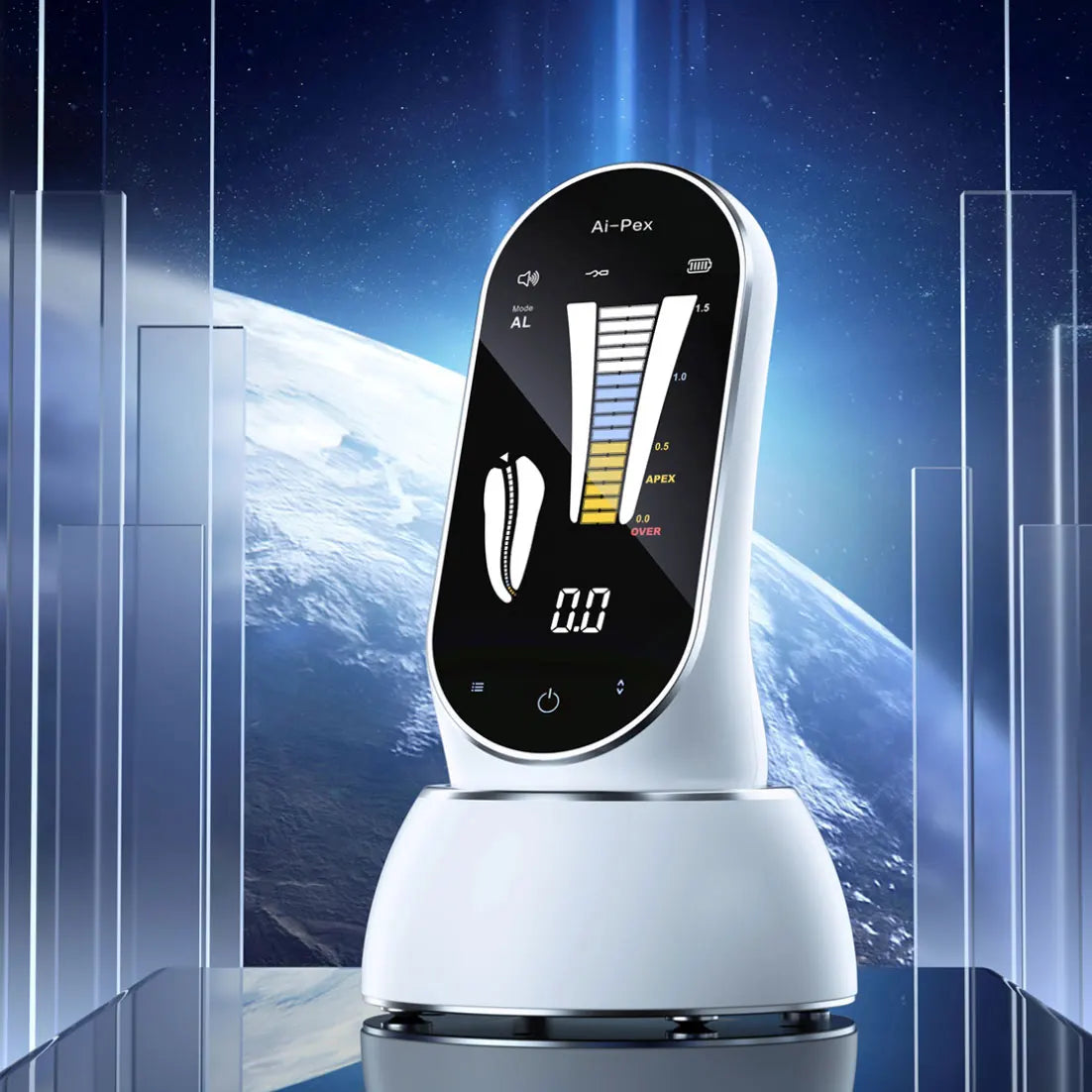

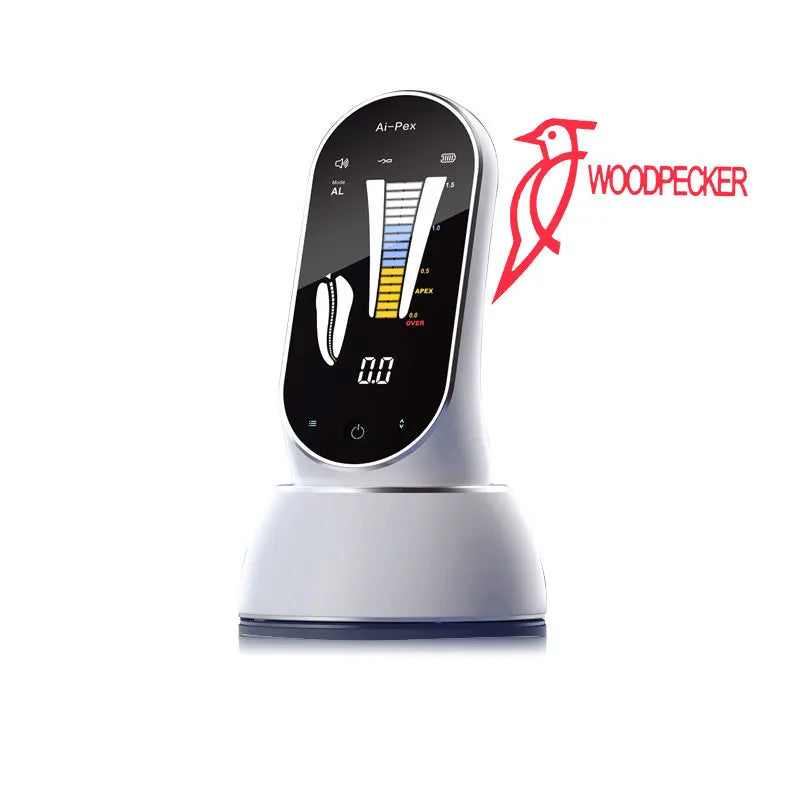

Woodpecker Ai-Pex Dental Apex Locator with Built-In Electric Pulp Tester
dental apex locator, pulp tester combined unit, root canal length measuring device, accurate endodontic apex finder, constant current pulp vitality tester, 3.8 inch color screen apex locator, magnetic base root canal measuring machine
2-in-1 Device: Apex Locator & Electric Pulp Tester
Woodpecker Ai-Pex integrates high-precision root canal apex locating technology and professional pulp vitality testing function in one compact unit, satisfying two core endodontic diagnostic demands without purchasing separate equipment for your dental clinic.
High Precision Measurement Technology
- Advanced digital technology effectively lowers measurement error for reliable clinical results
- Adopts American main processing chip with high-speed DSP processing module for instant data calculation
- Automatic calibration upon startup to eliminate manual calibration trouble
- High precision electronic components with only 0.1% tolerance for stable readings
Stable Readings In All Canal Conditions
This apex locator has low environmental interference requirements, performing stably on all types of complex root canals. Measurement accuracy will not be disturbed by blood, residual pulp tissue, dry or wet canal environments, delivering consistent working length data in all clinical scenarios.
Constant Current Pulp Vitality Test System
Thermal testing cannot fully stimulate coronal pulp nerve tissue, making electric pulp testers essential auxiliary diagnostic tools. Compared with constant voltage pulp testers, Ai-Pex uses constant current output to maintain stable stimulation intensity throughout testing, offering much higher accuracy when judging pulp vitality and matching histopathological diagnosis results better.

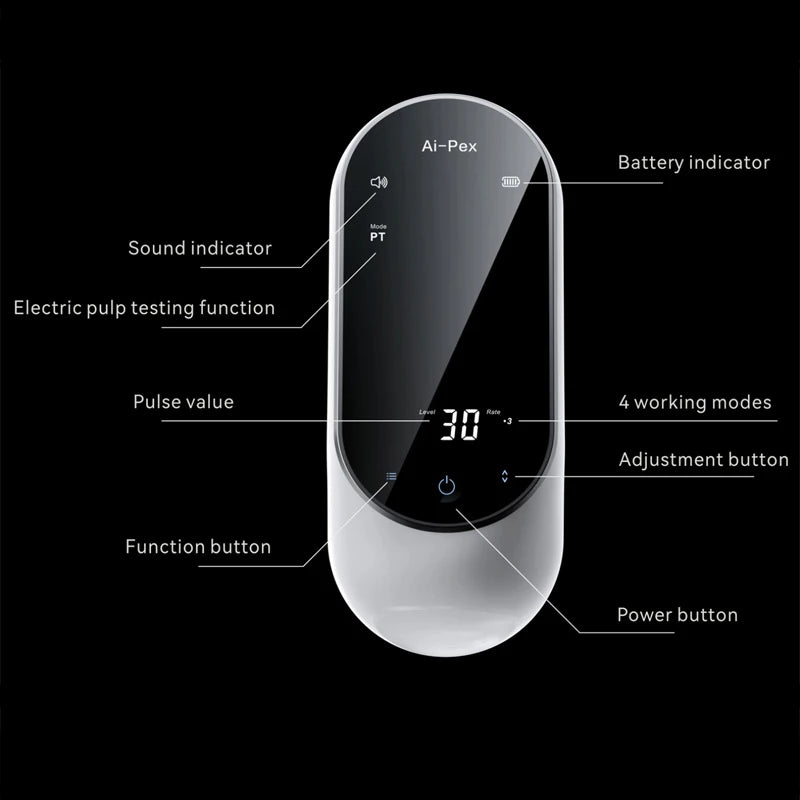

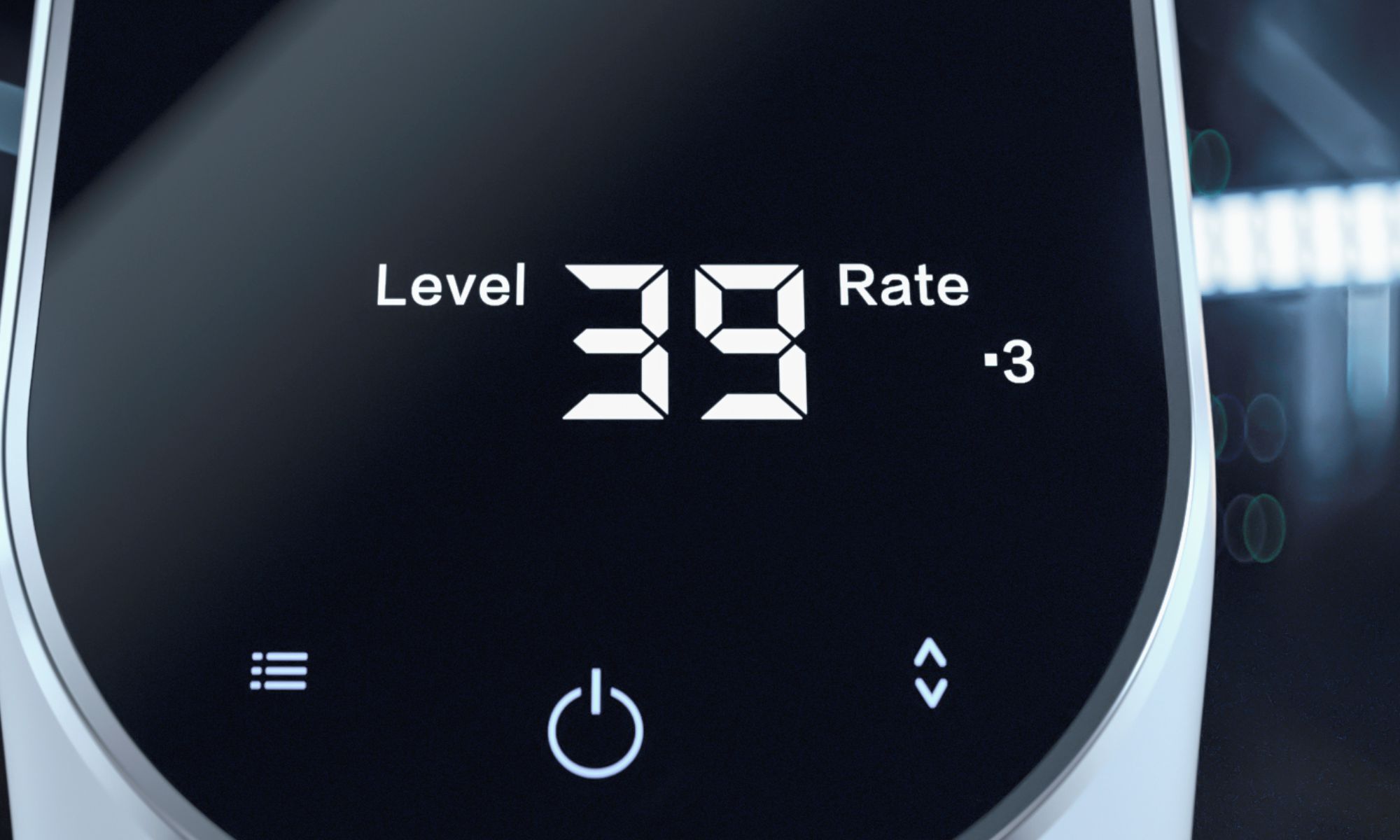

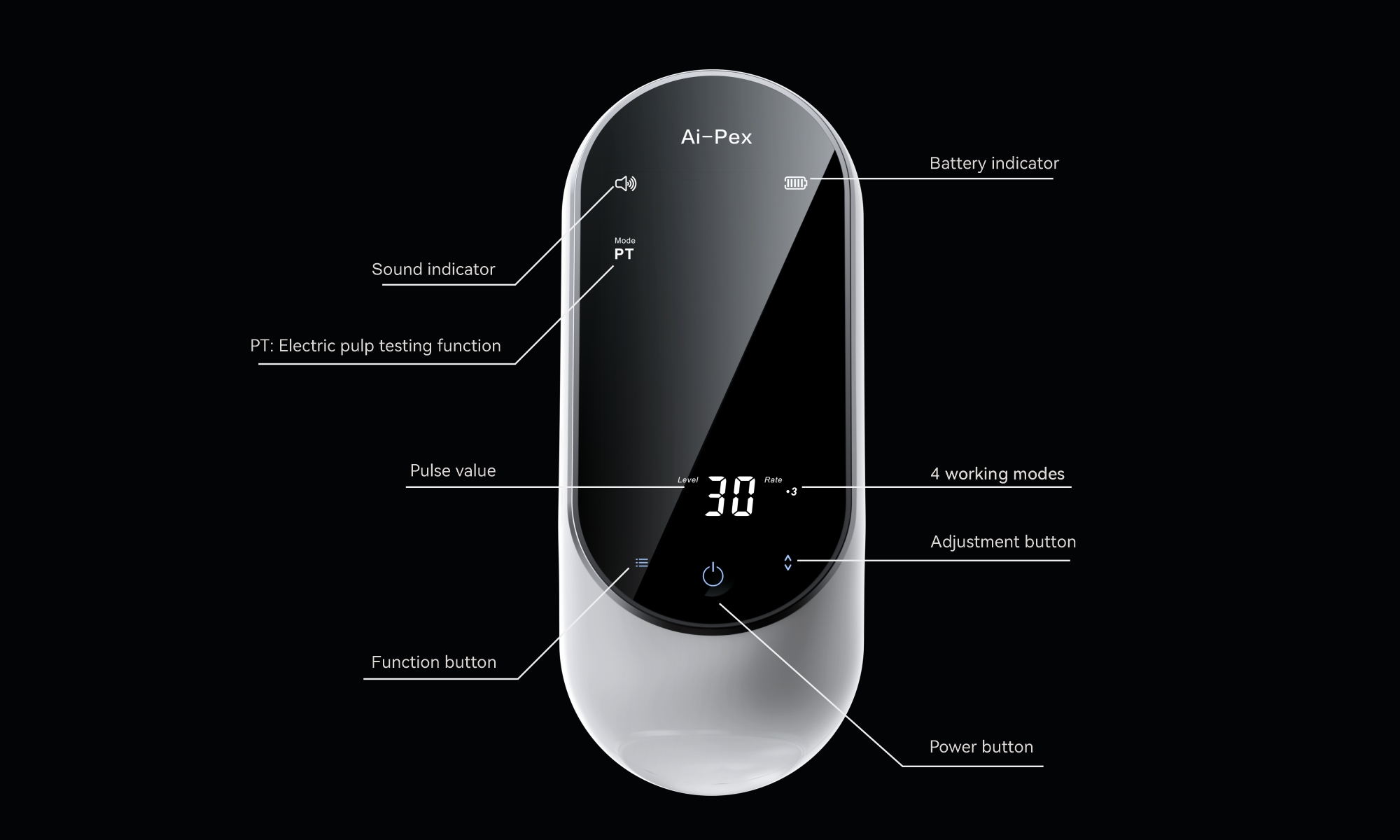

PT Mode Function Guide & Adjustable Testing Modes
The pulp tester function includes 4 adjustable working modes; the fastest mode reaches maximum pulse intensity within 6.2 seconds for flexible testing speed control.
- Long press function button to switch into PT pulp test mode
- Adjust testing speed via dedicated speed control button
- Attach lip hook and pulp probe, coat probe tip with conductive agent like toothpaste
- Place probe on cervical 1/3 of target tooth and adjacent tooth for contrast testing
- Compare tingling threshold values to judge pulp vitality status

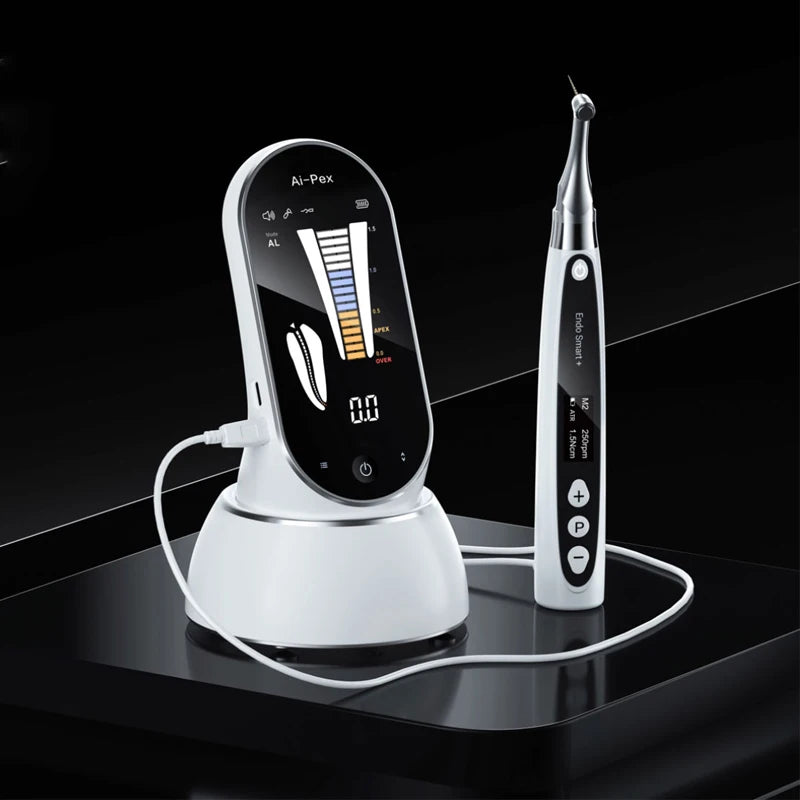

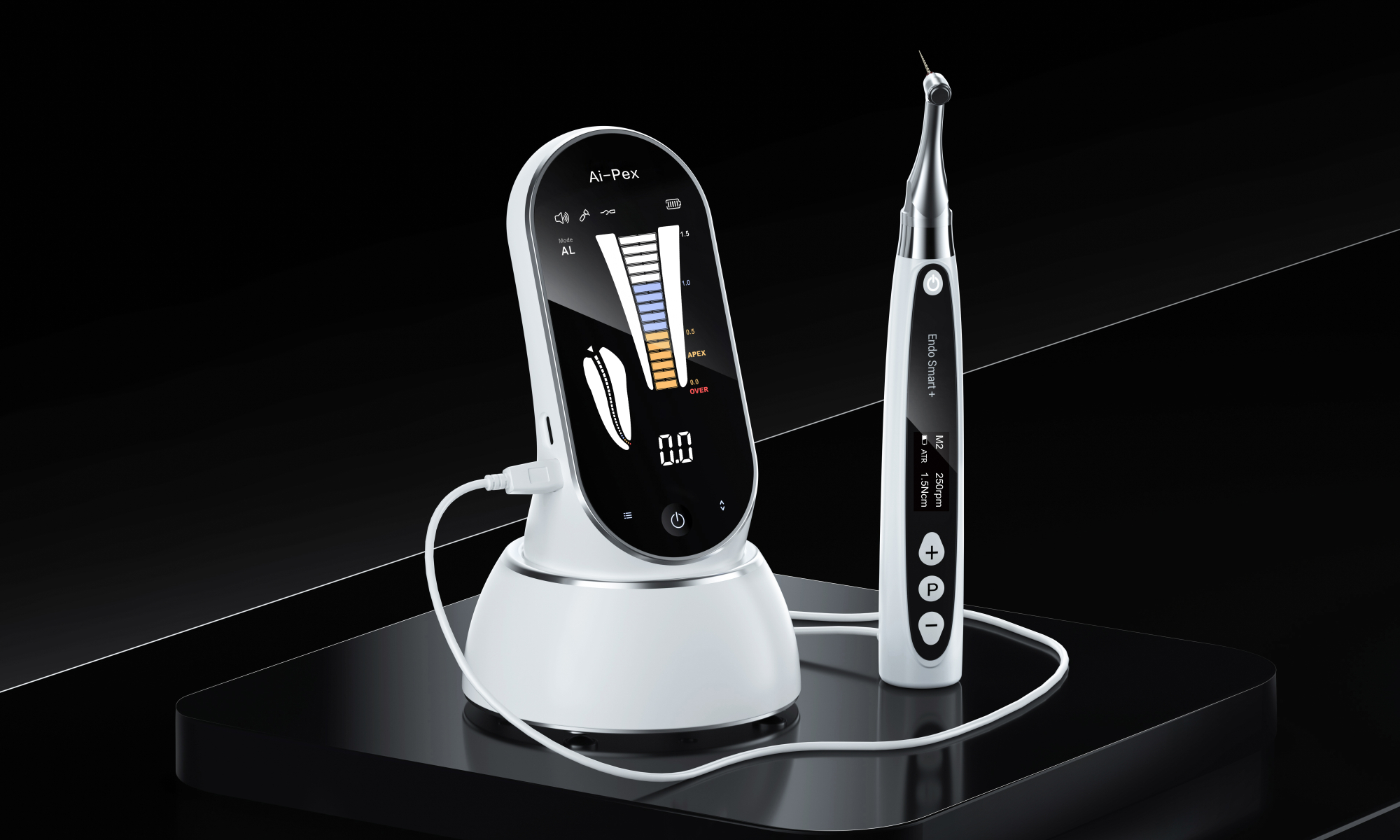

Sync Linkage With Endo Motor For Safe Canal Preparation
When connected to a compatible Woodpecker endo motor, Ai-Pex delivers real-time tracking of file position inside the root canal and triggers intelligent auto-protection features such as auto reverse rotation to prevent apical over-instrumentation and root perforation.

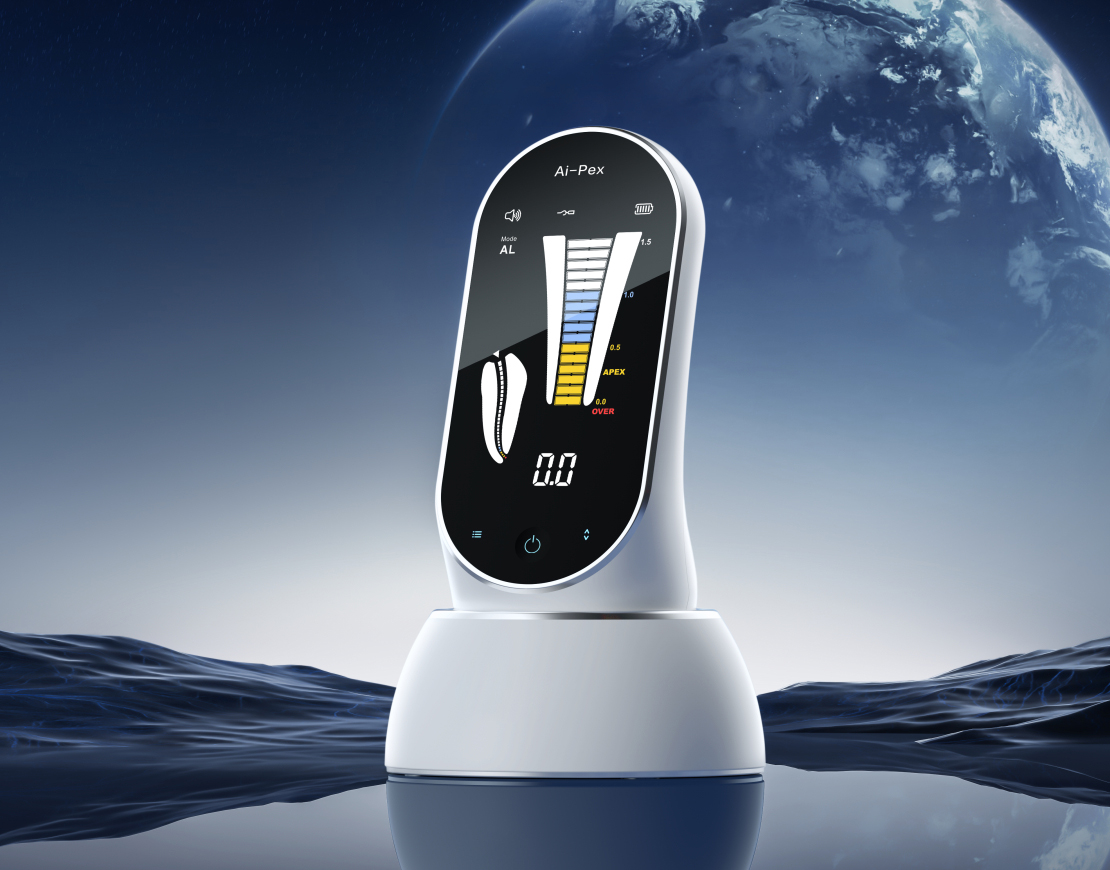

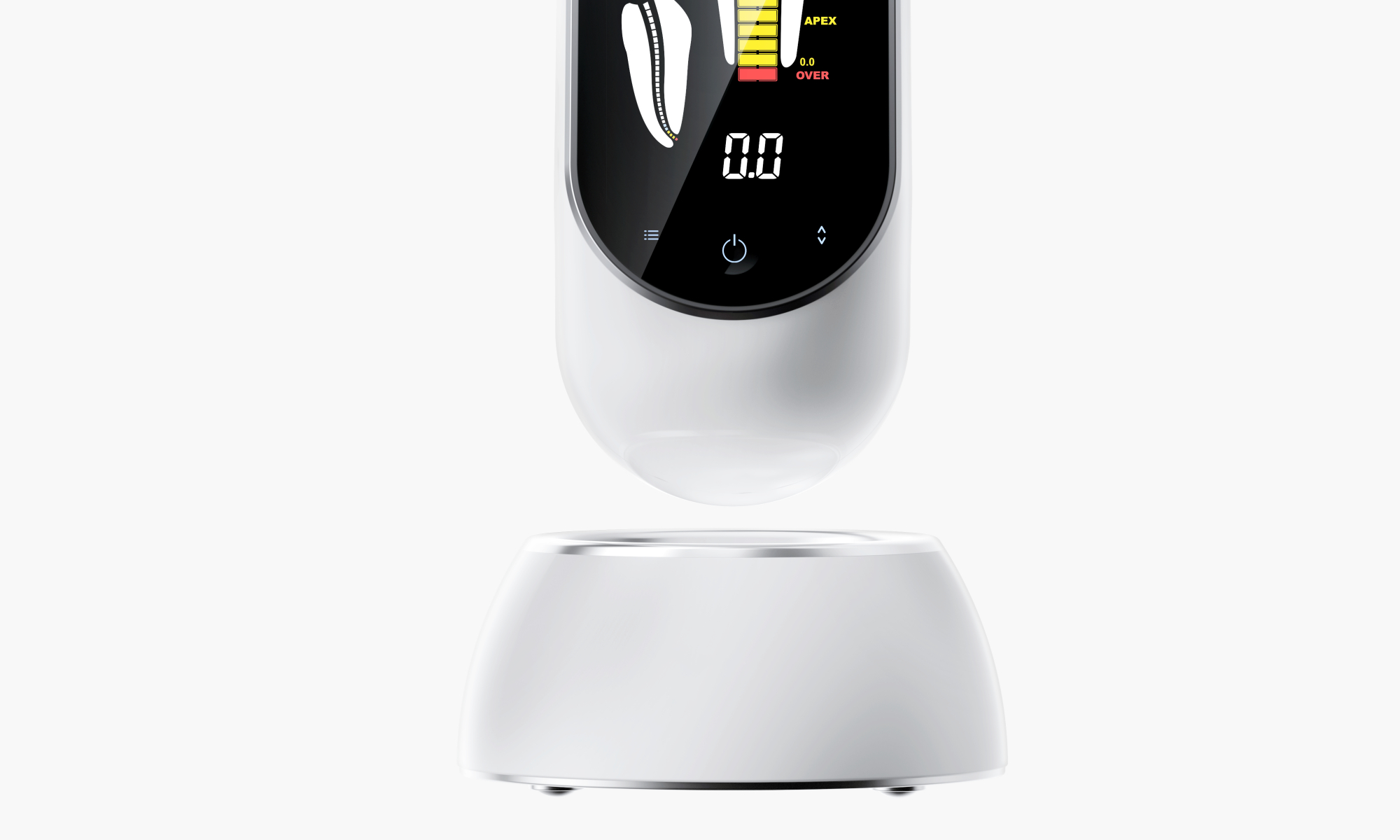

360° Rotatable Magnetic Adsorption Base
The machine base uses magnetic adsorption design with full 360-degree rotation capability, allowing clinicians to freely adjust screen viewing angle without glare or backlight interference during operation.

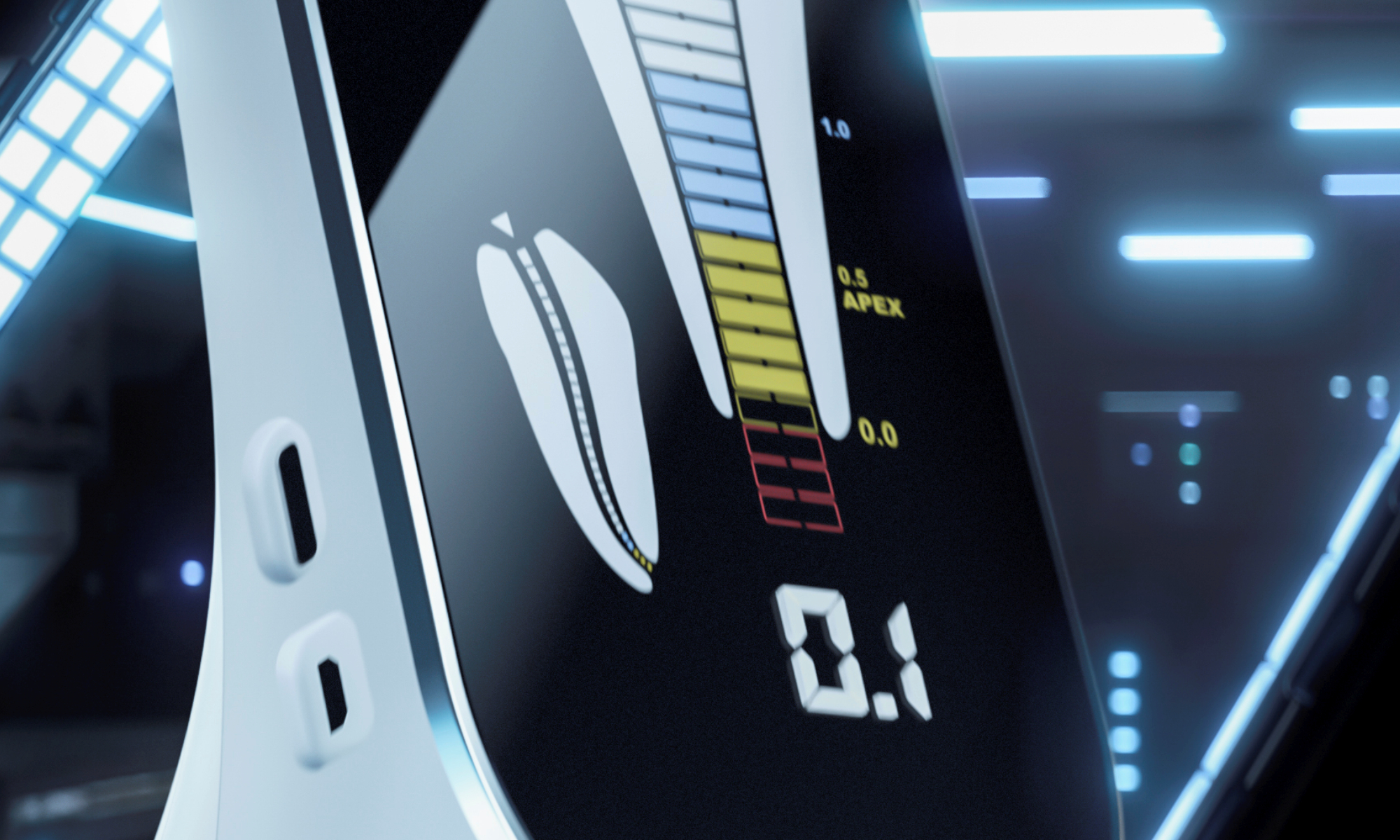

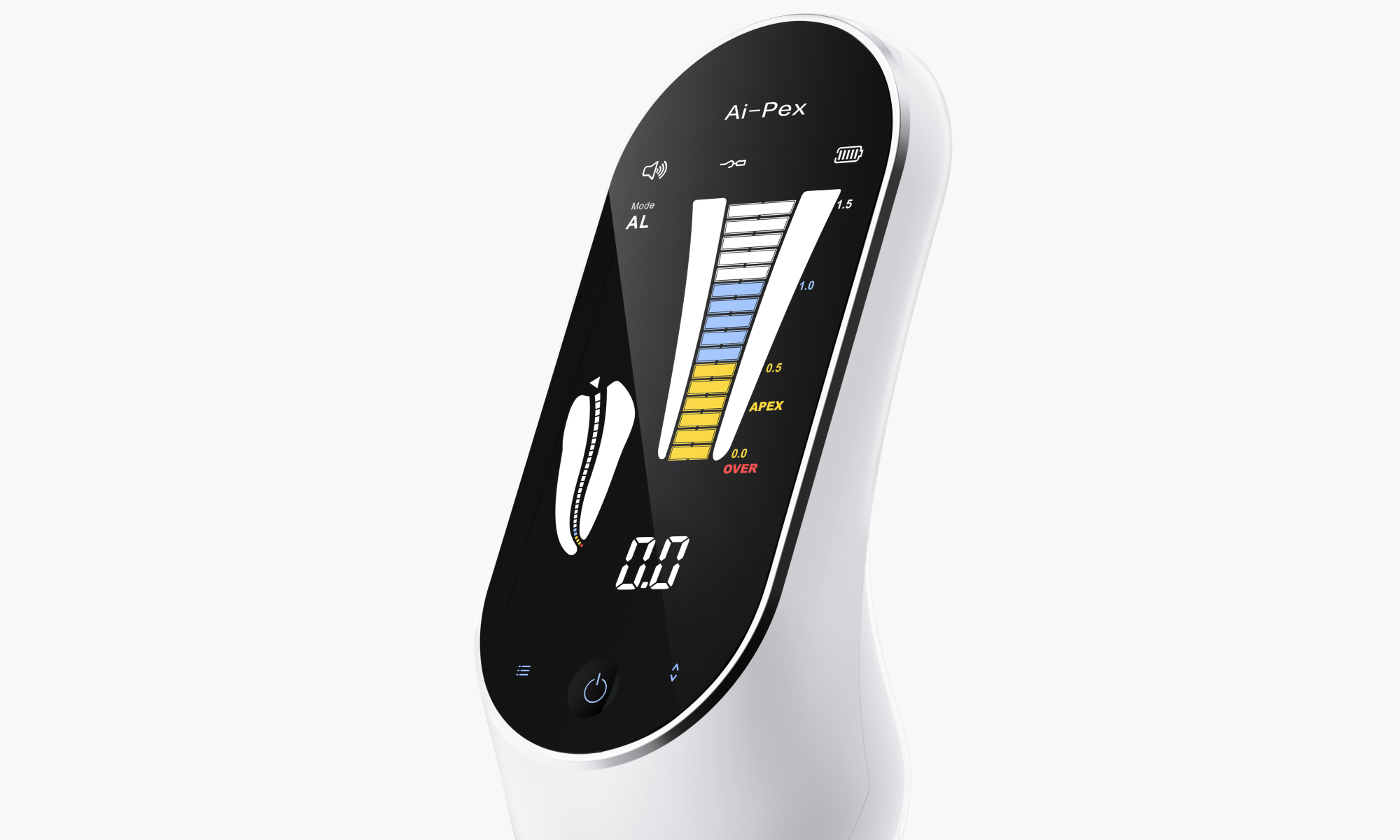

3.8 Inch Color Touch Screen With Adjustable Audio Alerts
- Large 3.8-inch LCD touch screen with four-color clear operation interface
- Clinical operation tip: measure to 0.0 mark then subtract 0.5~1 mm for accurate working length
- Intermittent low-frequency beeps activate when reading falls below 1.5; beep frequency speeds up as probe nears apical foramen
- Continuous high-frequency alarm tone triggers once apical stop is reached; alarm volume and tone are fully adjustable

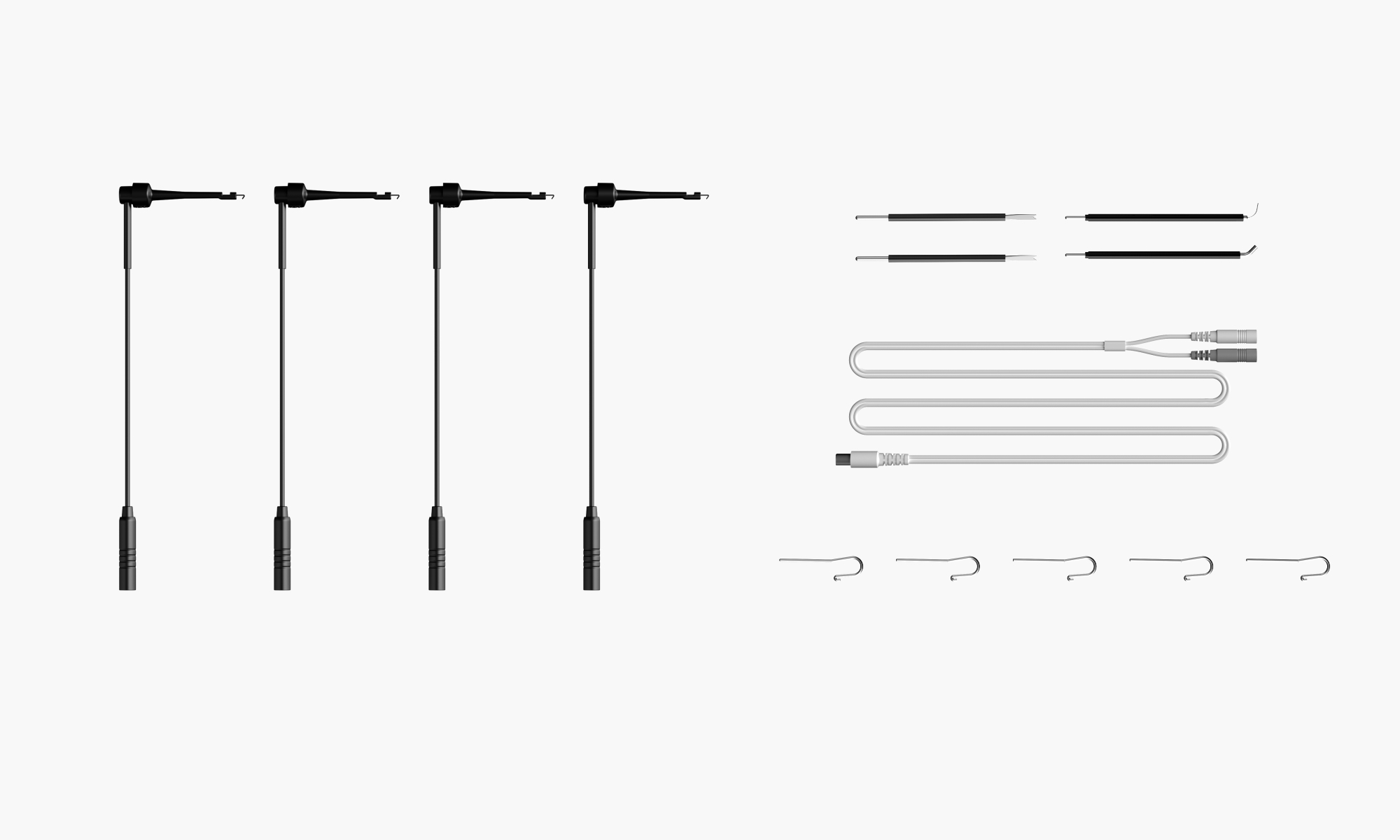

Complete Autoclavable Accessories & Dual-Size Pulp Probes
All metal contact accessories are medical stainless steel and autoclavable for cross-infection control, while measuring wires are soft and durable for long service life. Two sizes of pulp tester probes cover all clinical cases:
- 2.6mm diameter probe: For intact teeth without pulp exposure, applied to cervical third area
- 0.5mm diameter probe: For intact crown teeth or pulp-exposed teeth on cervical third
Accessory list: 4 silicone-coated file clips, 5 medical stainless steel lip hooks, 2 apex locator probes, 2 pulp tester probes; measuring wire non-autoclavable.
Full Technical Specifications
| Parameter Item | Specification |
|---|---|
| Continuous Operating Time | 7 hours |
| Full Charging Time | 3 hours |
| Battery | 3.7V / 2000mAh |
| Power Input | 100–240V, 50/60Hz, 0.4A |
| Display Screen | 3.8-inch LCD touch screen |
| Working Ambient Temperature | +5°C ~ +40°C |
| Relative Humidity Range | 30% ~ 75% |
| Applicable Atmospheric Pressure | 70kPa ~ 106kPa |
Brand Background: Guilin Woodpecker Medical Instrument Co., LTD.
Woodpecker is a professional full-line dental equipment manufacturer, supplying endo motors, apex locators, ultrasonic scalers, obturation systems, air polishers, diode laser systems and other clinical dental devices. All products pass strict international medical certification standards for reliable daily use in dental clinics across the globe.
