Description of the device

Apex locator is a supporting equipment of endodontic treatment, through the measurement of the length of apical teeth, helping dentists to finish the endodontic treatment.

Features of the device:

a) Equipped with clear bright LCD, clear image and different colors indicate the trajectory of the file clearly.

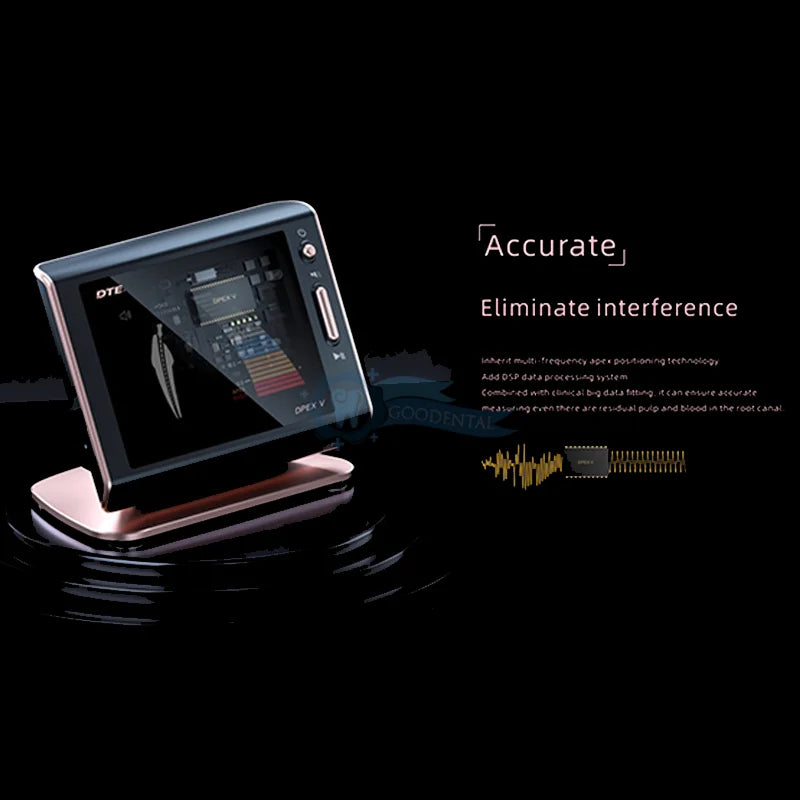

b) Based on advanced multiple frequency network impedance measurement technology and automatic calibrating ensures the measurements are accurate.

c) The File clip, Lip hook and Touch probe can be autoclaved under high temperature and high pressure, avoiding cross infection effectively.

d) Battery is rechargeable, unnecessary to replace batteries repeatedly.

• Adopt high-precision components imported from Japan.
• High resolution signal without distortion.
• Automatic calibration during 0.5s booting.

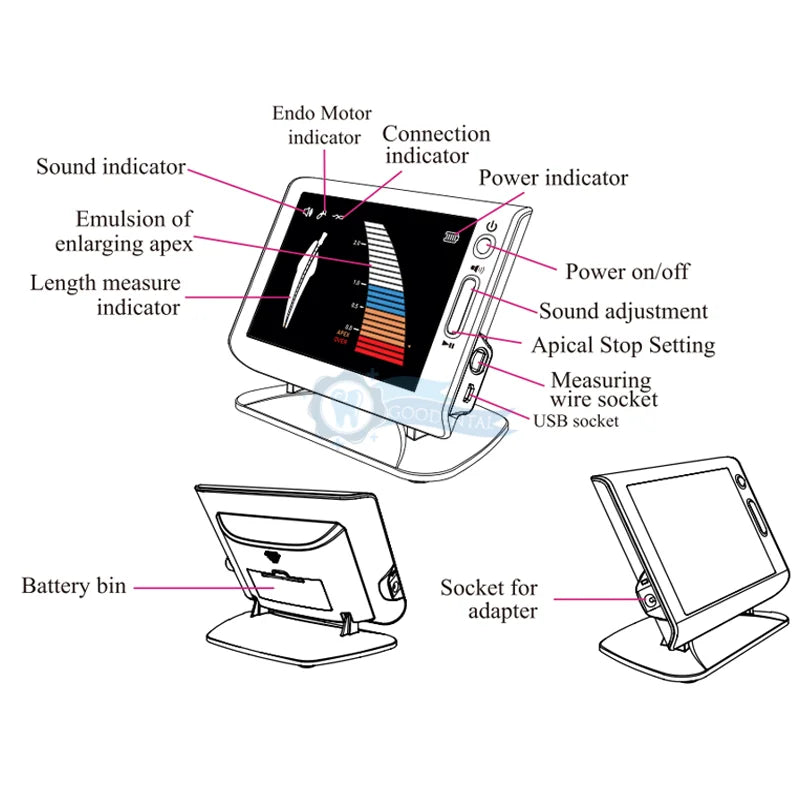

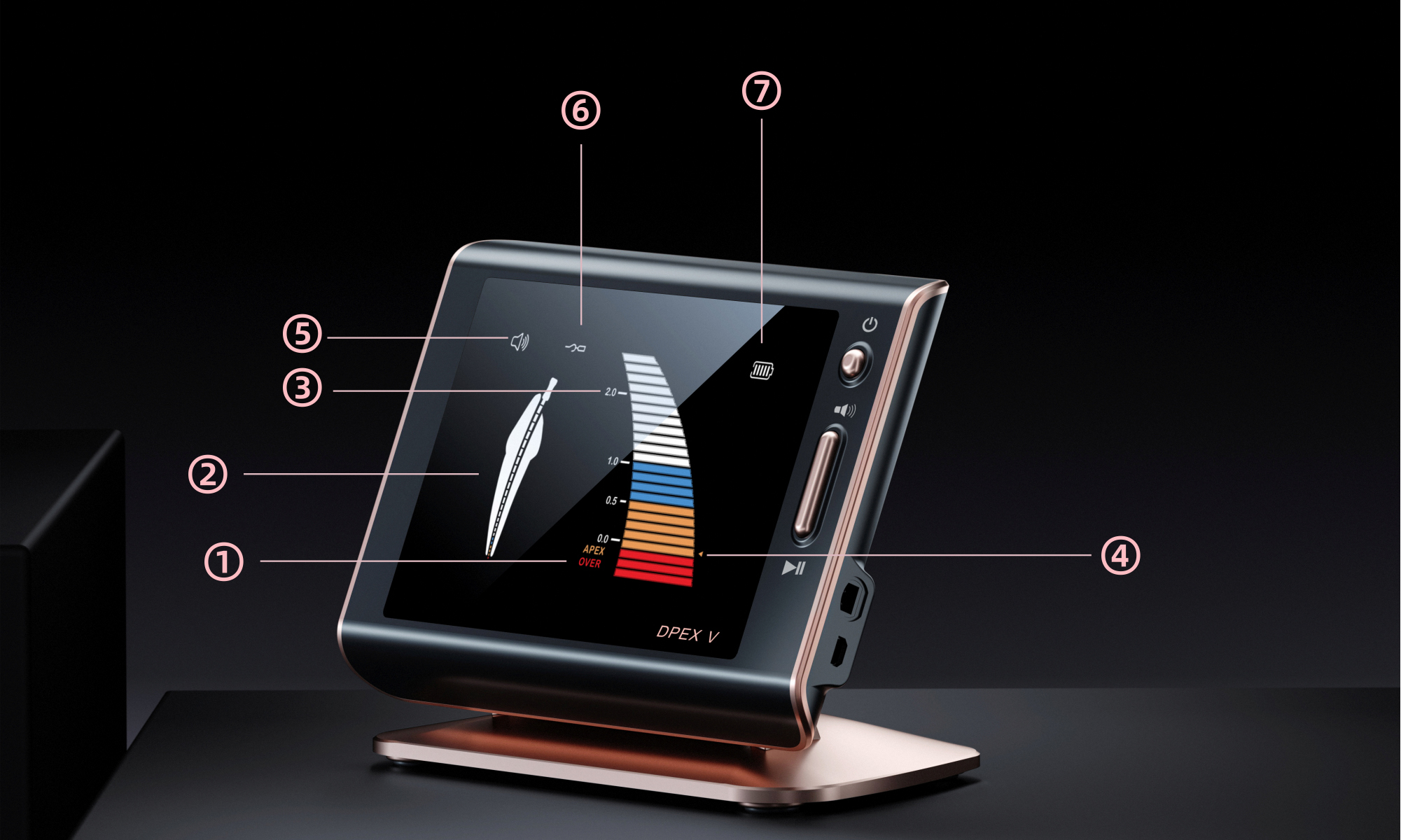

① 0.0 APEX apical foramen

• The red indicator area indicates that the file exceeds the apical foramen.


② Root canal length indicator strip 1

• Working when the file is in the root canal

③ Root canal length indicator strip 2

• Working since the file reaches apical 1/3

④Preset apical stop

• Preset position for root canal
• length measurement
• Can be set within the range of 0.0~1.0

⑤ Alarm prompt volume setting

• OFF,Low,Medium,High

⑥ Short-circuit test reminder

• When the file clip is short-circuited with the lip hook,if the icon is lit,the connection is good.

⑦ Battery level

• Insert the file into the root canal,and the root canal length indicator strip 1 will display accordingly.
• With the advancement of the file,the root canal length indicator bar will also display accordingly.
• When the file reaches apical 1/3,the root canal length indicator strip 2 starts to display,and there are intermittent low-frequency "beep" sound prompts.
• When the tip of the file reaches the preset position of the apex stop, there is a continuous high-frequency "beep"sound prompt.
• "00"means that the file reaching the apical hole.If the tip of the file exceeds the APEX position and enters the red area,it exceeds the apical foramen.

Clear view and sound

• Zoom in on the apical 1/3 narrow part
• Subdivision from 11-19
• More accurate and intuitive measurement trajectory,effectively preventing perforation.
• When the file is less than 2mm from the apical foramen,there will be intermittent low-frequency beeps prompt.
• When the file approaches the apical foramen,the sound gradually rushed.
• When the file reaching the preset position of the apex,there will be continuous high-frequency beeps prompt.
• The sound level can be adjusted,and the position can be distinguished by sound,making measurement easier.

Apical stop setting

• Optimized and upgraded LCD display enables brighter color
• The light source is evenly distributed without glare

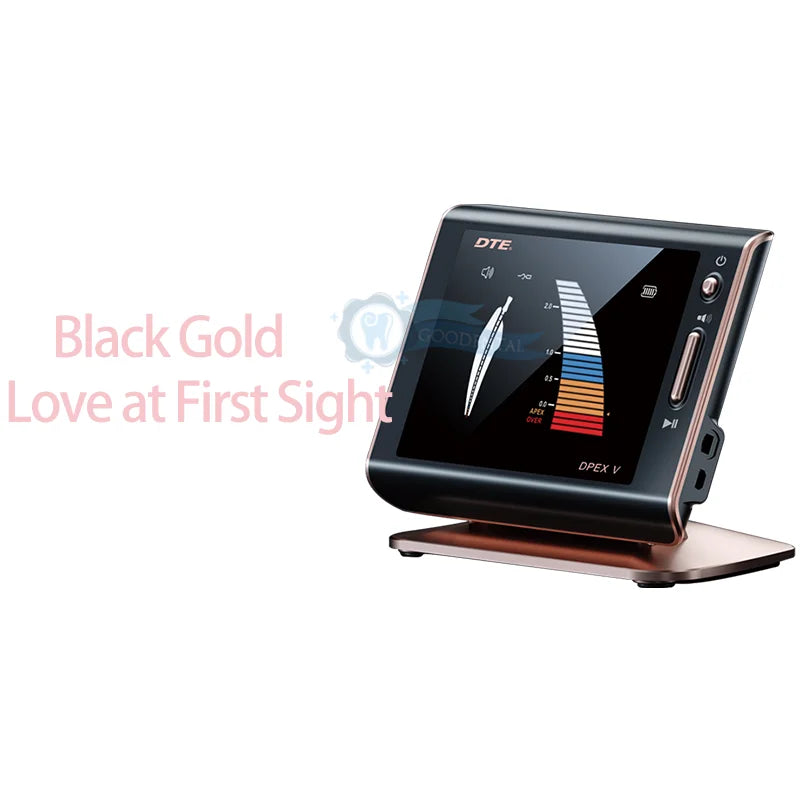

• Charming appearance of mysterious dark and the rosy gold

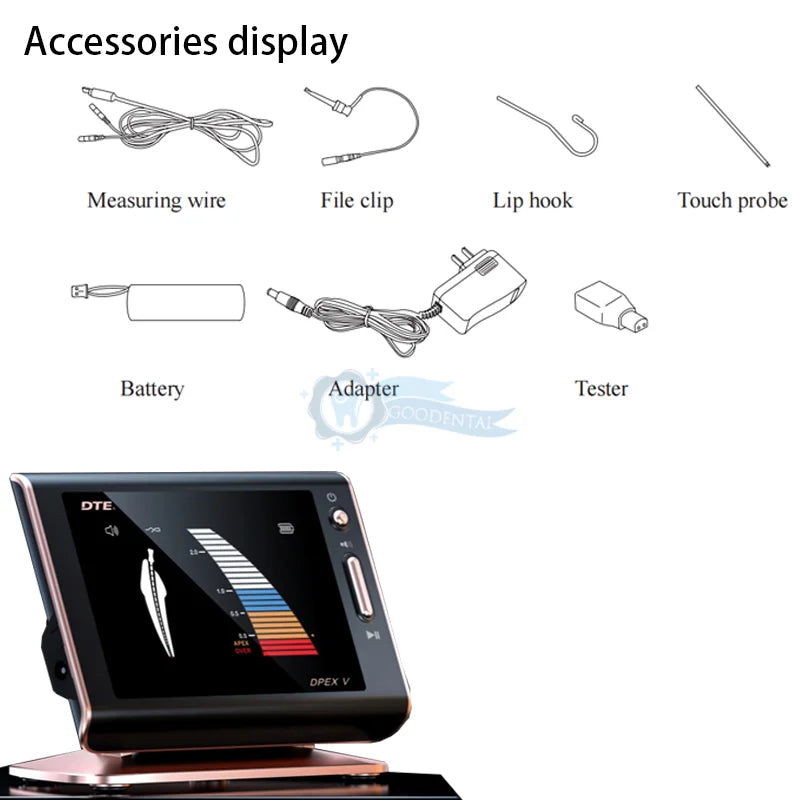

Multi-configuration

• File clip X 4
• Lip hook X 5
• Probing X 2
