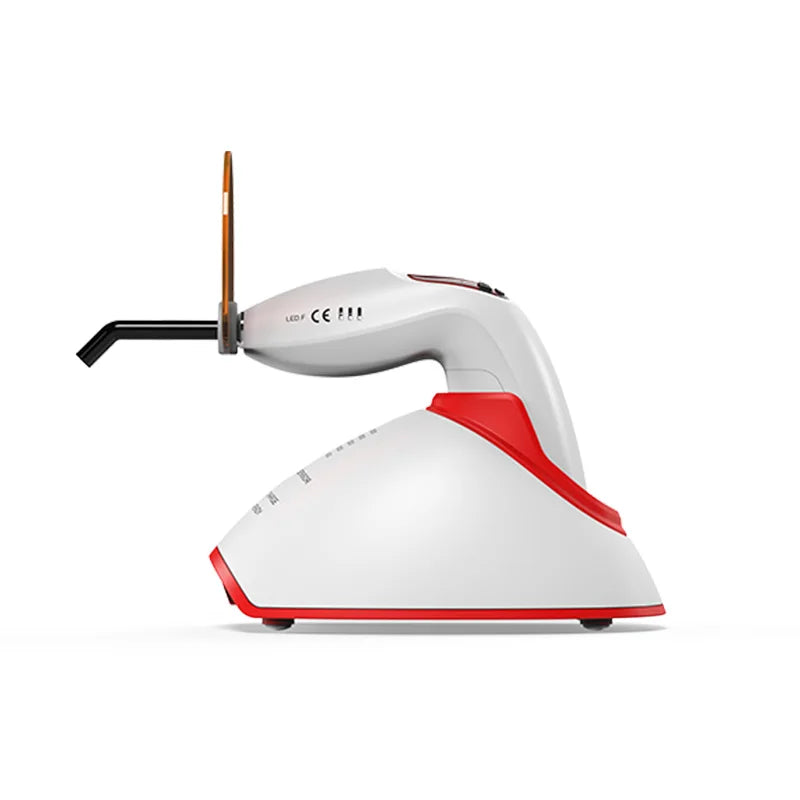

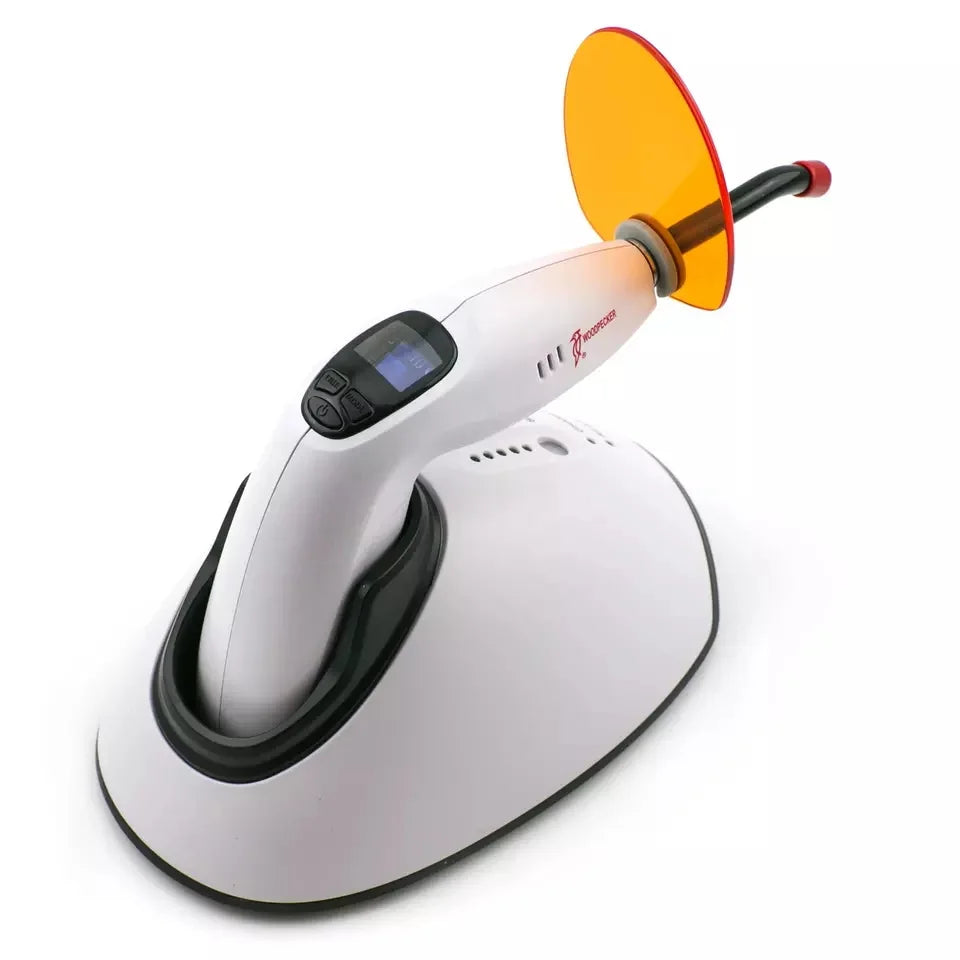

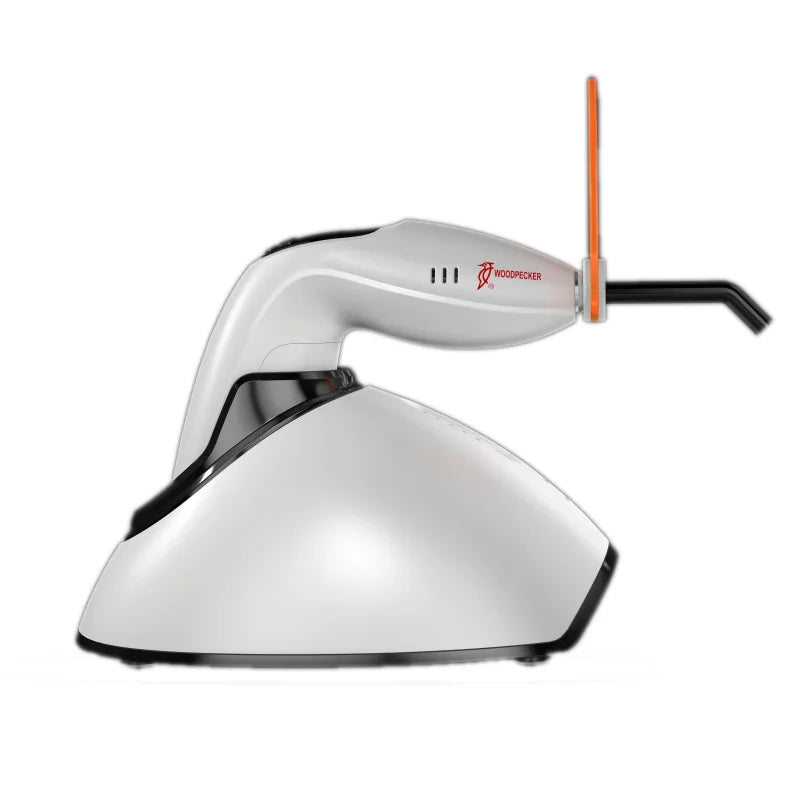

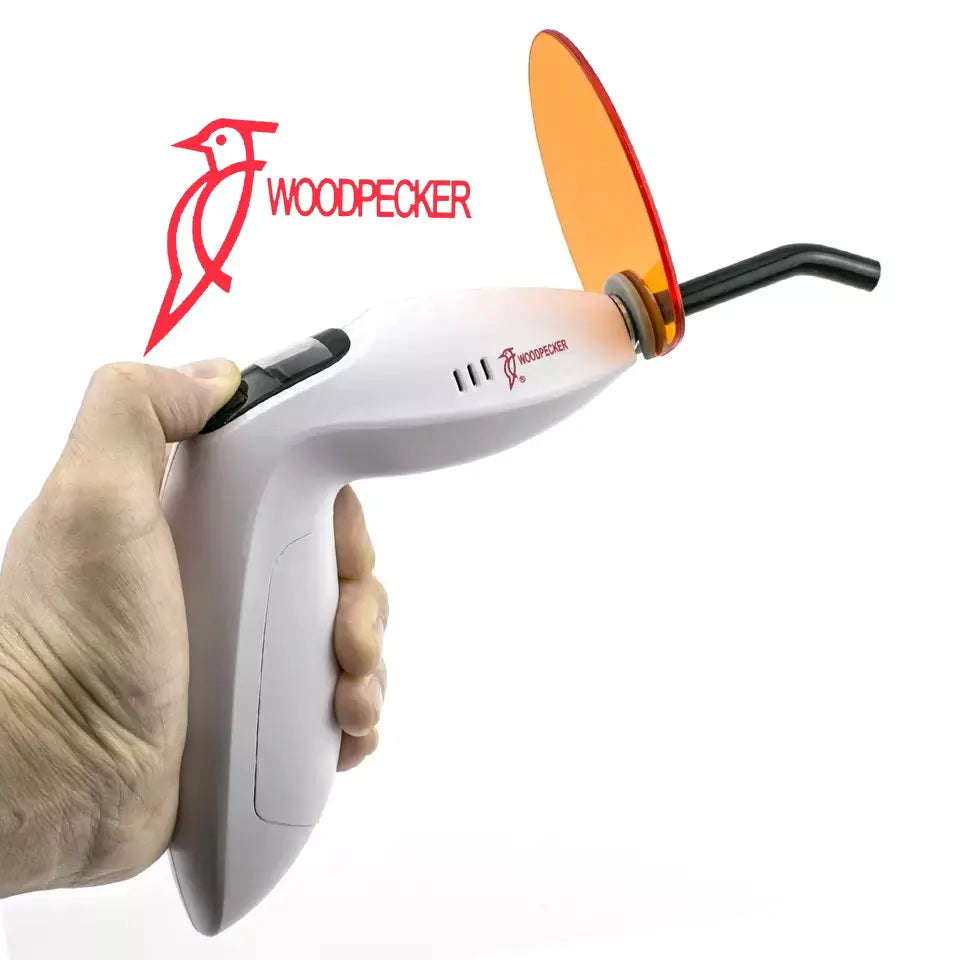

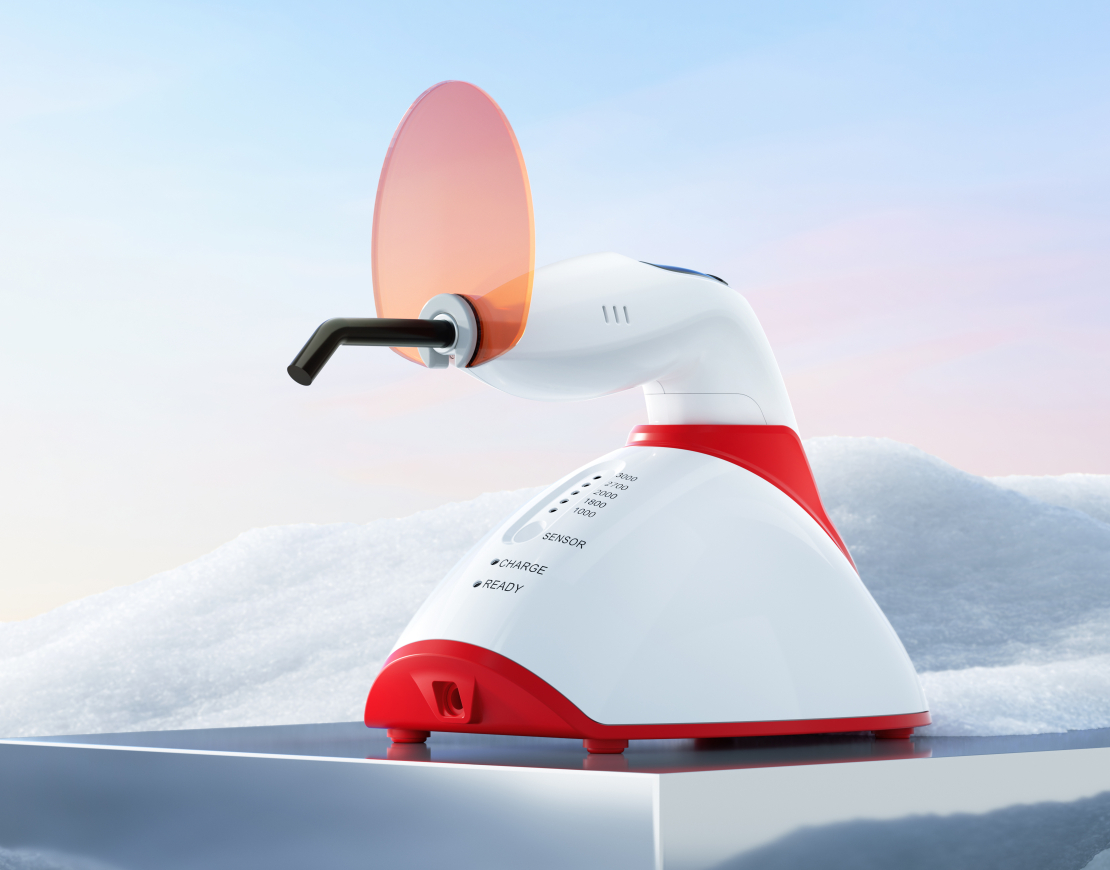

Woodpecker LED.F Wide Spectrum Dental LED Curing Light
dental led curing light, wide spectrum curing lamp, woodpecker LED.F curing light, orthodontic bracket cure lamp, resin polymerization light, constant intensity dental light, autoclavable fiber curing unit, TPO resin dental curing light
Product Overview
LED.F is Woodpecker upgraded wide-spectrum LED dental curing light, professionally designed for all types of resin restoration, orthodontic bonding and teeth bleaching treatments. Compared with ordinary curing lights, its expanded wavelength range delivers complete curing performance for TPO and camphorquinone based resin materials, solving incomplete curing issues in clinical practice.

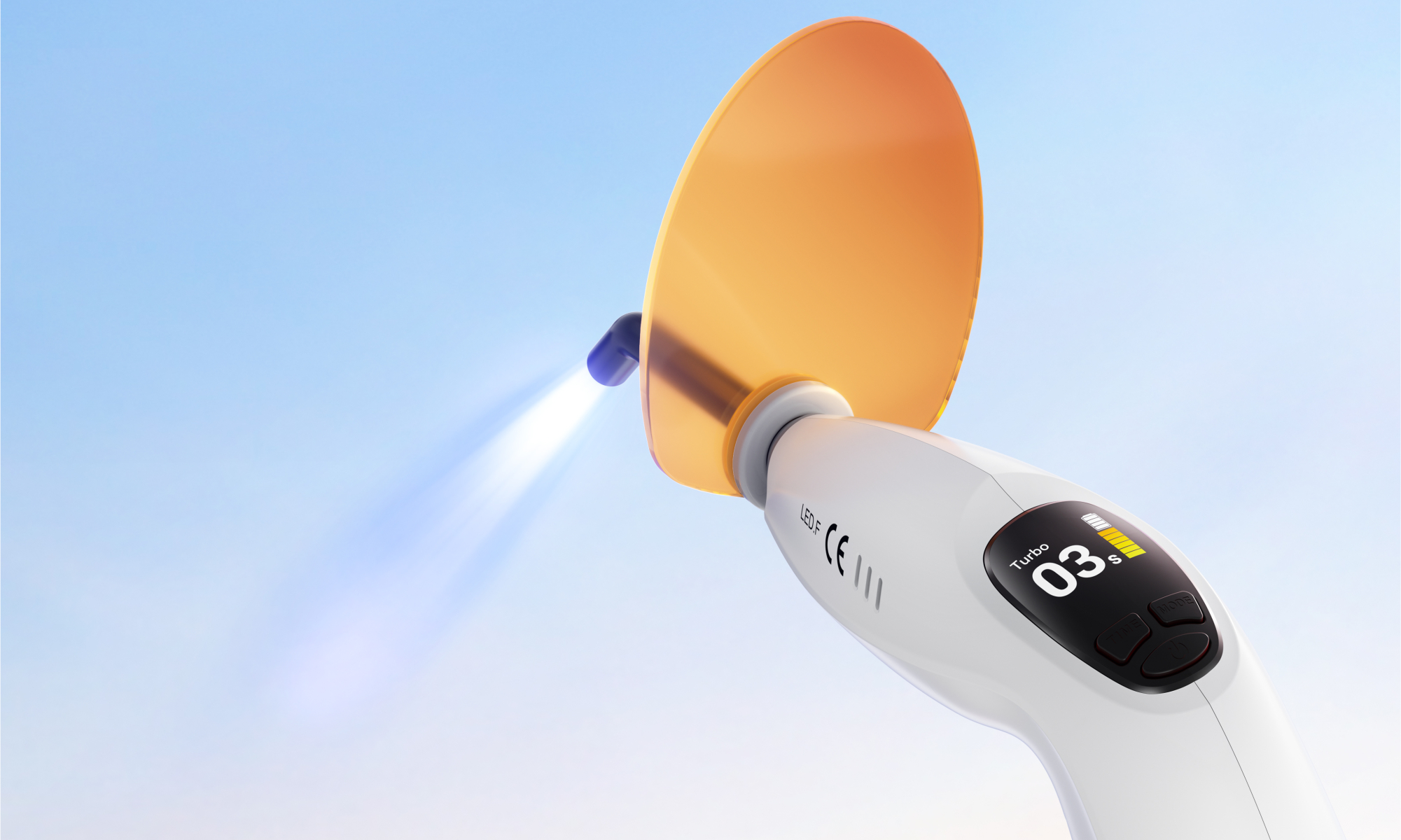

Ultra-Wide Spectrum LED Light Source
The LED.F adopts upgraded wide-spectrum LED with emission band of 380-515nm, wider than standard 420-480nm curing lights. The extra 380-420nm wave band efficiently cures TPO photoinitiator resins including Tetric N-Ceram Bulk Fill, Amelogen Plus and ENA Hri. It performs well on transparent and bleaching resins while avoiding yellow discoloration limitations of traditional camphorquinone lights.
Core Built-In Features
- Suitable for curing orthodontic brackets, veneers and fiber posts adhesives

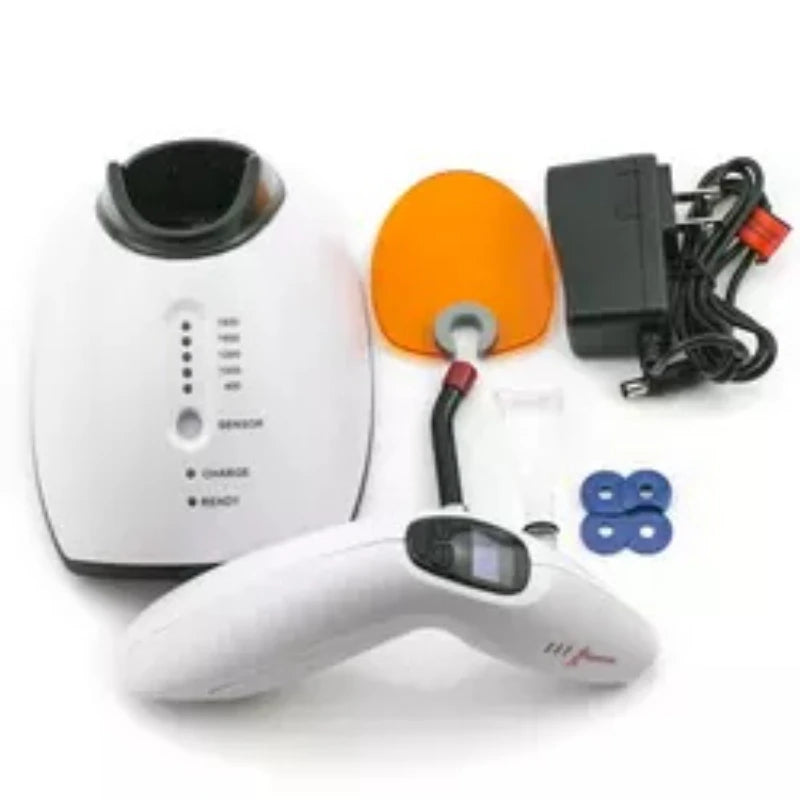

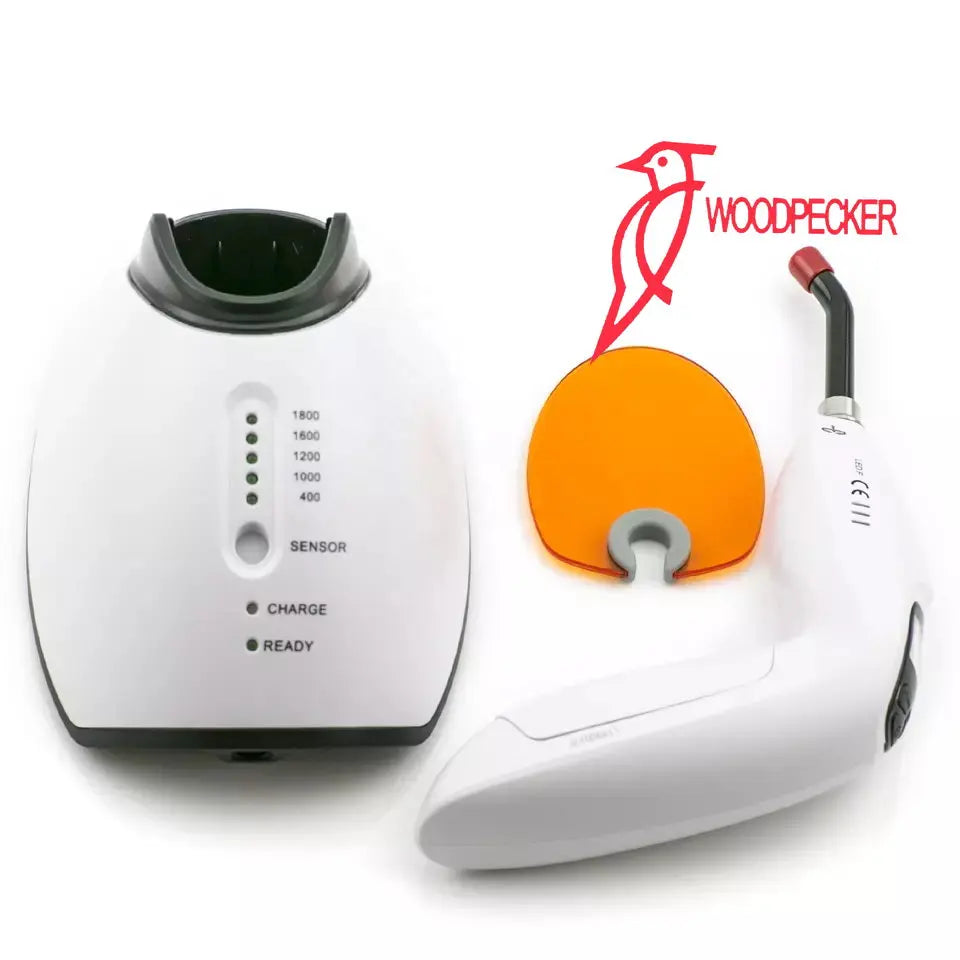

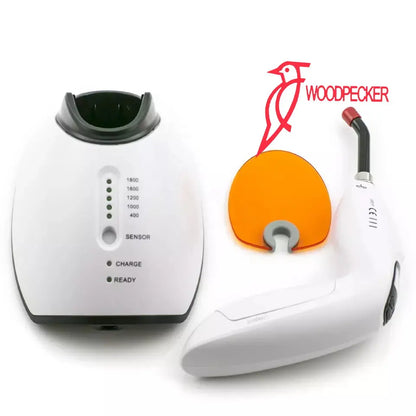

- Comes with supporting light meter for regular intensity detection
- Full-view OLED screen with clear display from all viewing angles
Unchanged Constant Light Intensity
This curing light maintains steady light output regardless of battery power loss. Conventional curing lights suffer obvious intensity drop when battery drains to 60%, leading to insufficient curing at resin bottom. LED.F constant output design guarantees consistent solidification effect throughout full battery cycle.
6 Custom Working Modes For All Clinical Scenarios
- Normal Mode (1000-1200 mw/cm²): Timers 5/10/15/20s, for daily filling and general restoration
- High Mode (1800-2000 mw/cm²): Timers 3/5s, fast deep curing for thick resin layers
- Turbo Mode (2700-3000 mw/cm²): Timers 1/3s, cures 2mm resin within only 1 second
- Ortho Mode (2700-3000 mw/cm²): 3s*5 / 3s*10 cycles, high penetration for bracket bonding
- Soft Mode (peak 1200 mw/cm²): Gradual intensity rise, reduces resin shrinkage and microleakage risk
- Pulse Mode (1000-1200 mw/cm²): Periodic flashing light to lower heat buildup and improve patient comfort
STD & Less Heat Dual Heat Control Modes
Two heat management options for flexible clinical use. STD Heat mode keeps constant light output for all modes except pulse flashing cycle. Less Heat mode switches all modes except STD and Soft to intermittent flashing to minimize thermal stimulation on teeth and pulp.
Blue Light Protective Light Hood
Prolonged blue light exposure damages retinal tissue and causes macular degeneration. Matching light hood is equipped with premium shielding material to block harmful blue ray and protect doctors' eyes during long-hour clinical operation.
Sterilizable Optical Fiber Tip
The optical fiber delivers stable concentrated light beam with narrow irradiation angle. It supports high-temperature autoclave sterilization under 134°C and 0.22MPa to effectively avoid cross infection between patients.
Full Technical Specifications
Power input: AC100 V-240 V 50 Hz/60 Hz
Light output intensity: 1000 mW/cm²- 3000 mW/cm²
Net weight: 210 g
Product dimensions: 40 mm ×150 mm × 195 mm
Brand Introduction
Manufactured by Guilin Woodpecker Medical Instrument Co., LTD, a professional manufacturer of full-series dental clinical equipment. The brand provides ultrasonic scalers, endo motors, apex locators, obturation systems, air polishers, X-ray radiology devices and diode laser systems, trusted by dental clinics and hospitals worldwide.
