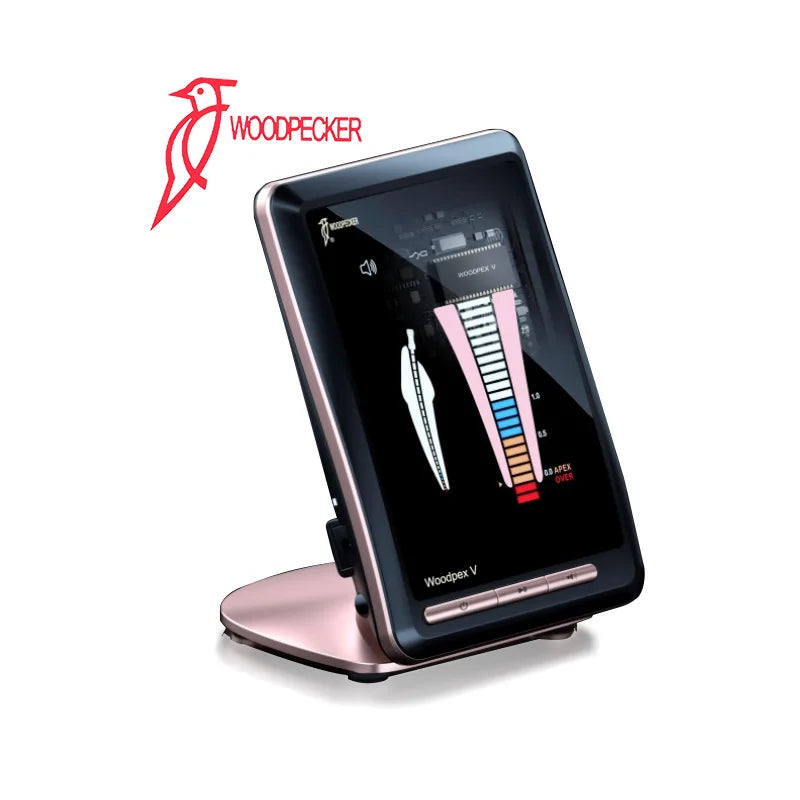

Woodpecker Woodpex V Dental Apex Locator

Technical specifications
Power supply:  Rechargeable Lithium battery
Battery model: ICR18490
Battery voltage and capacity: 1400mAh
Input of adapter: 100V to 240V~ 50Hz/60Hz
Built-in fuse of adapter: 1A/250V
Applied part: optical fiber
Light intensity: 1000mW/cm2~1200mW/cm2
Dimensions: Φ23mm×263mm
Net weight: 124g
Consumption power: ≤8W

Working condition:
Environment temperature: 5℃ to 40℃
Relative humidity: 30%~75%
Atmosphere pressure: 70kPa to 106kPa

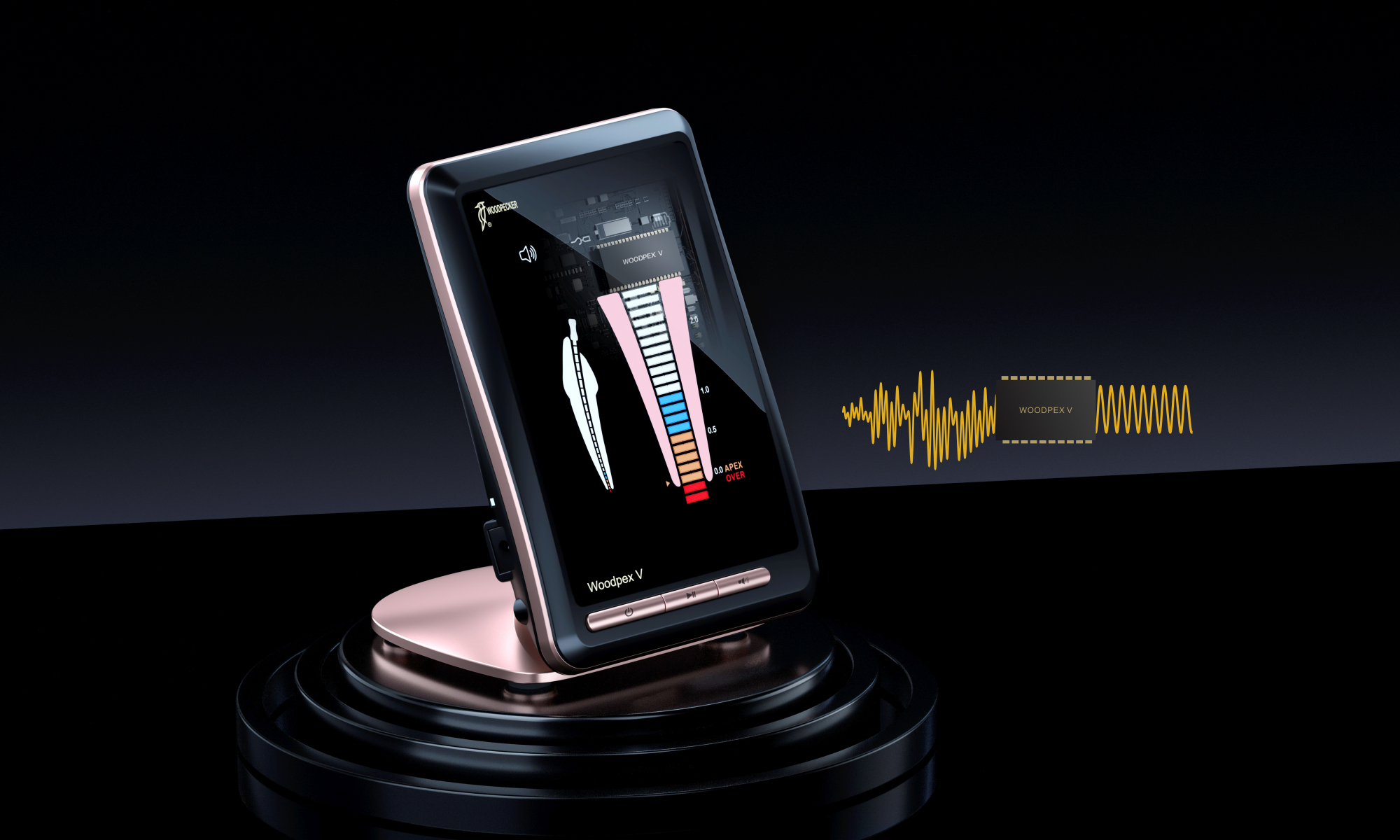

The Fifth Generation Apex Locator

Accurate,Eliminate interference

• Inherit multi-frequency apex positioning technology
• Add DSP data processing system
• Combined with clinical big data fitting, it can ensure accurate measuring even there are residual pulp and blood in the root canal.

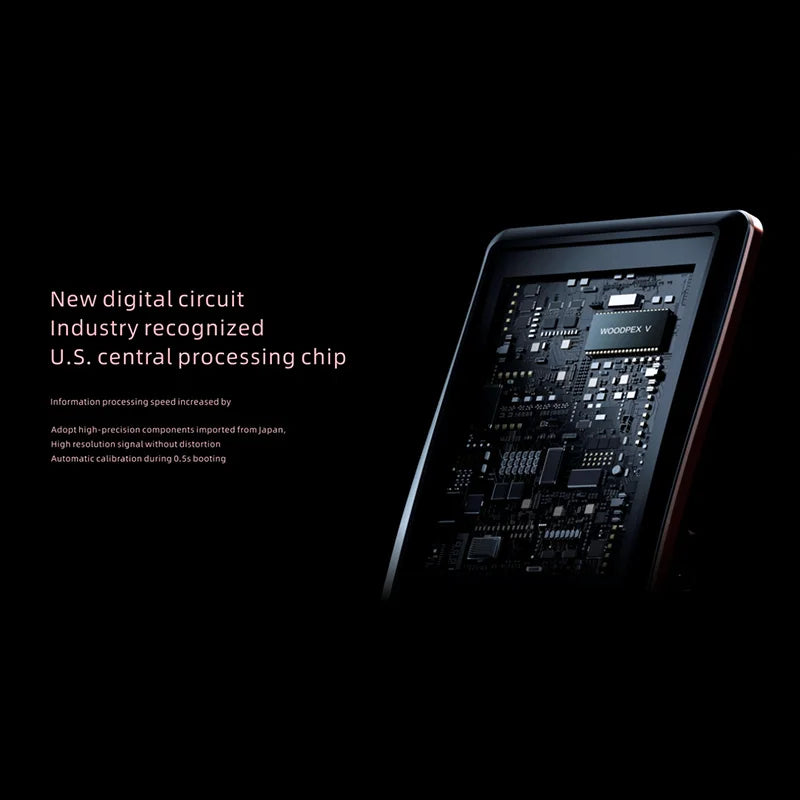

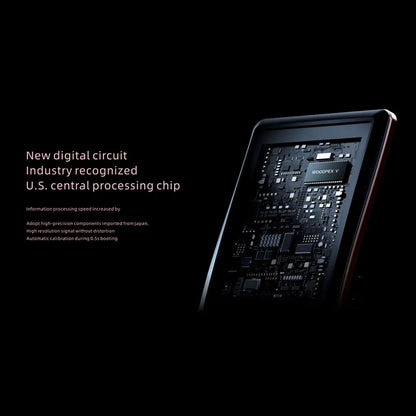

Industry recognized

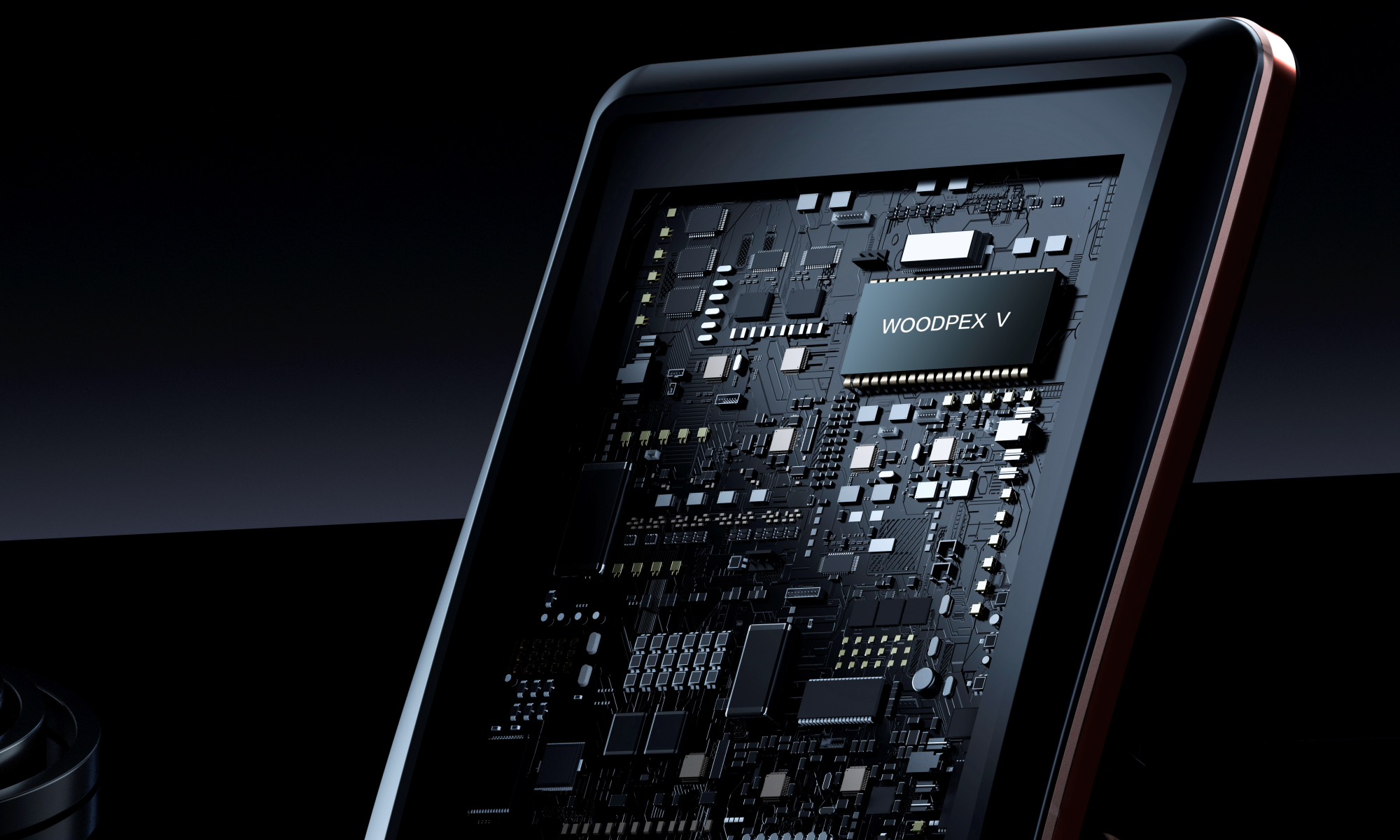

U.S. central processing chip

Information processing speed increased by:

• Adopt high-precision components imported from Japan
• High resolution signal without distortion

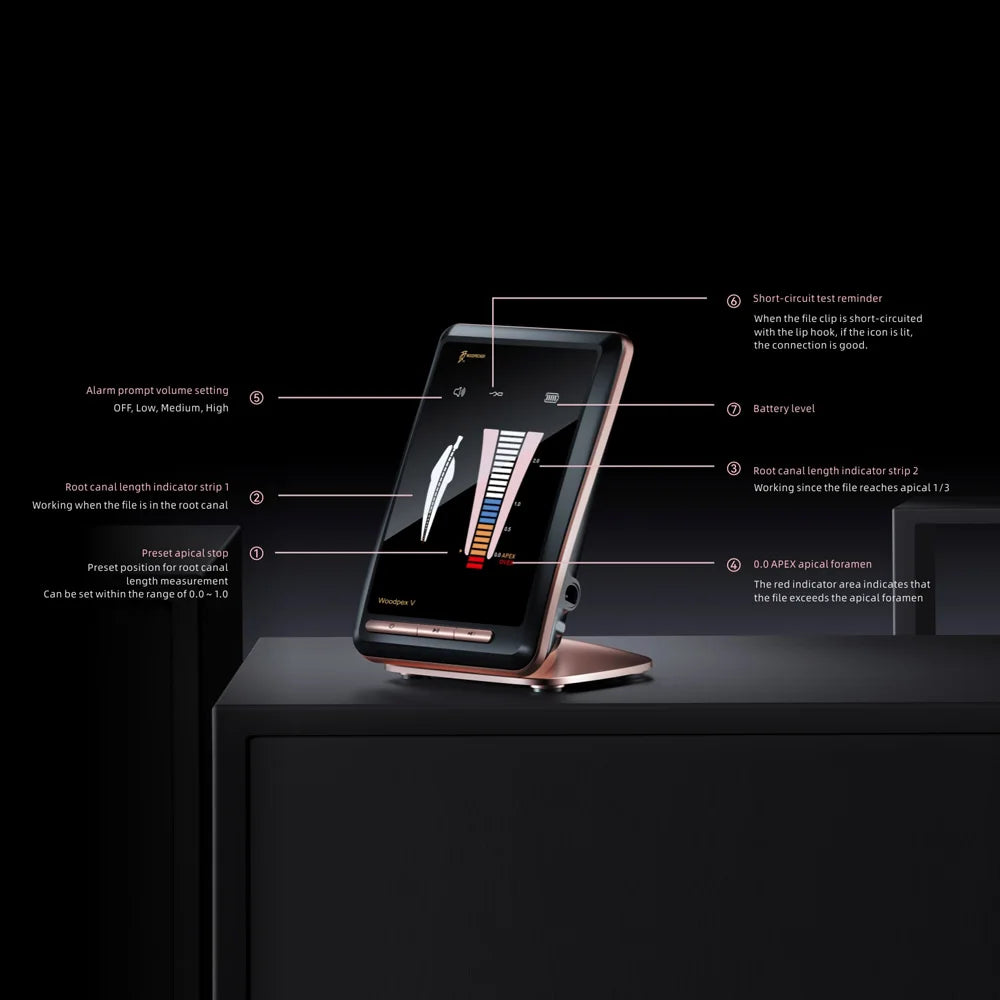

• Automatic calibration during 0.55 booting

• Preset position for root canal
• length measurement
• Can be set within the range of 0.0~ 1.0

②.Root canal length indicator strip 1

• Working when the file is in the root canal

③.Root canal length indicator strip 2

• Working since the file reaches apical 1/3

④.0.0 APEX apical foramen

• The red indicator area indicates that the file exceeds the apical foramen

⑤.Alarm prompt volume setting

• OFF,Low,Medium,High

⑥.Short-circuit test reminder

• When the file clip is short- circuited with the lip hook, if the icon is lit ,the connection is good.

⑦.Battery level

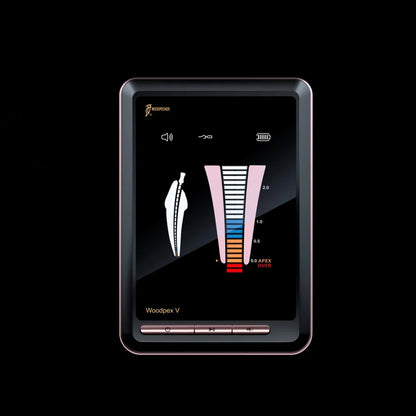

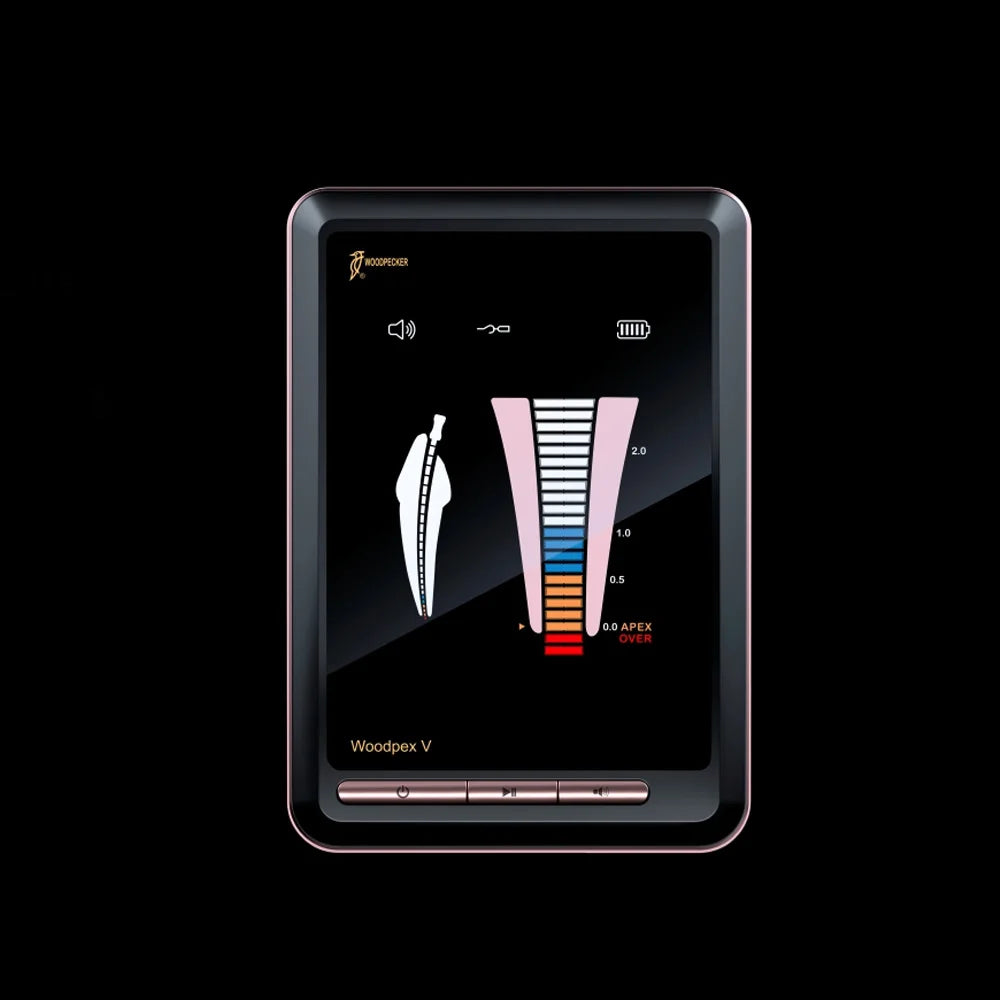

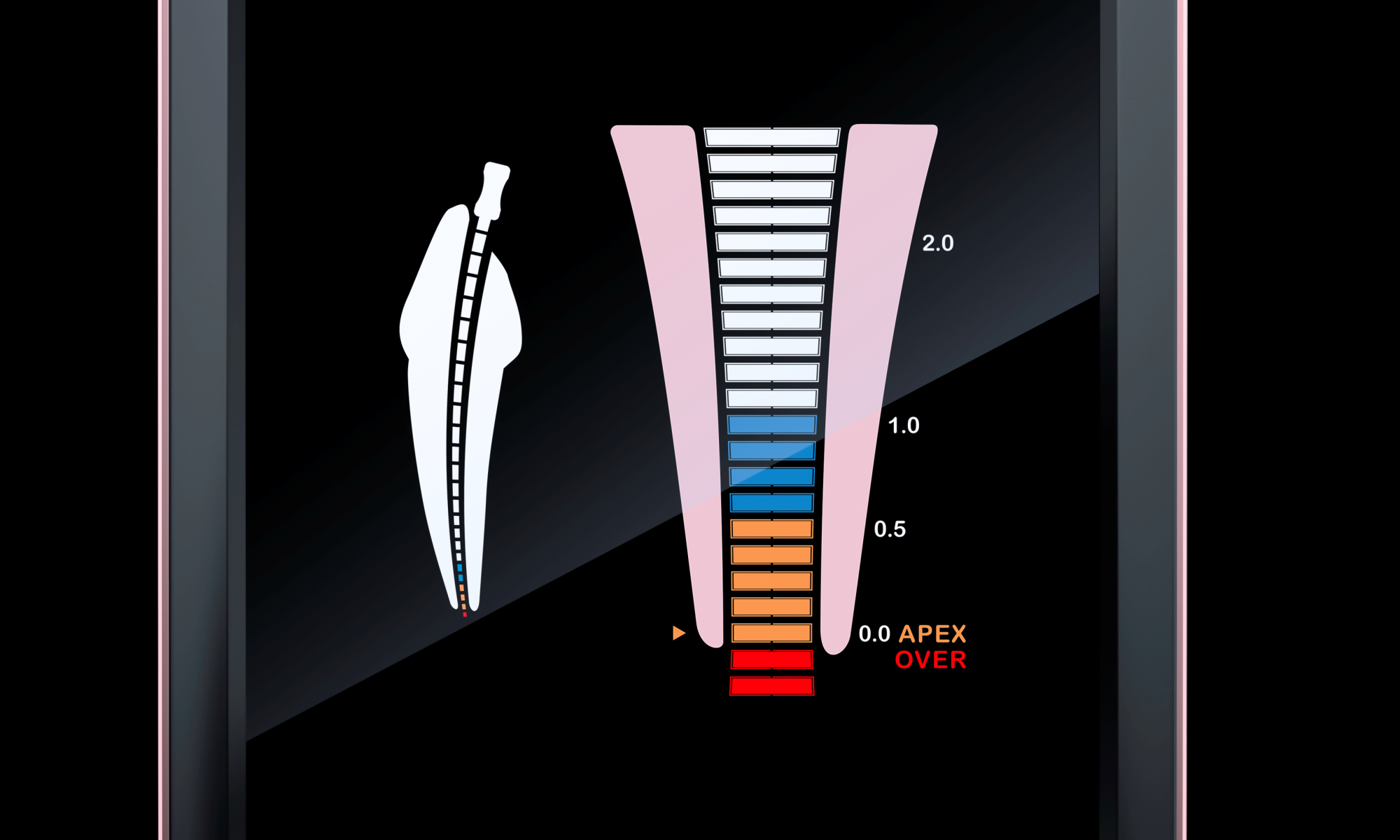

Display the file position in the root canal

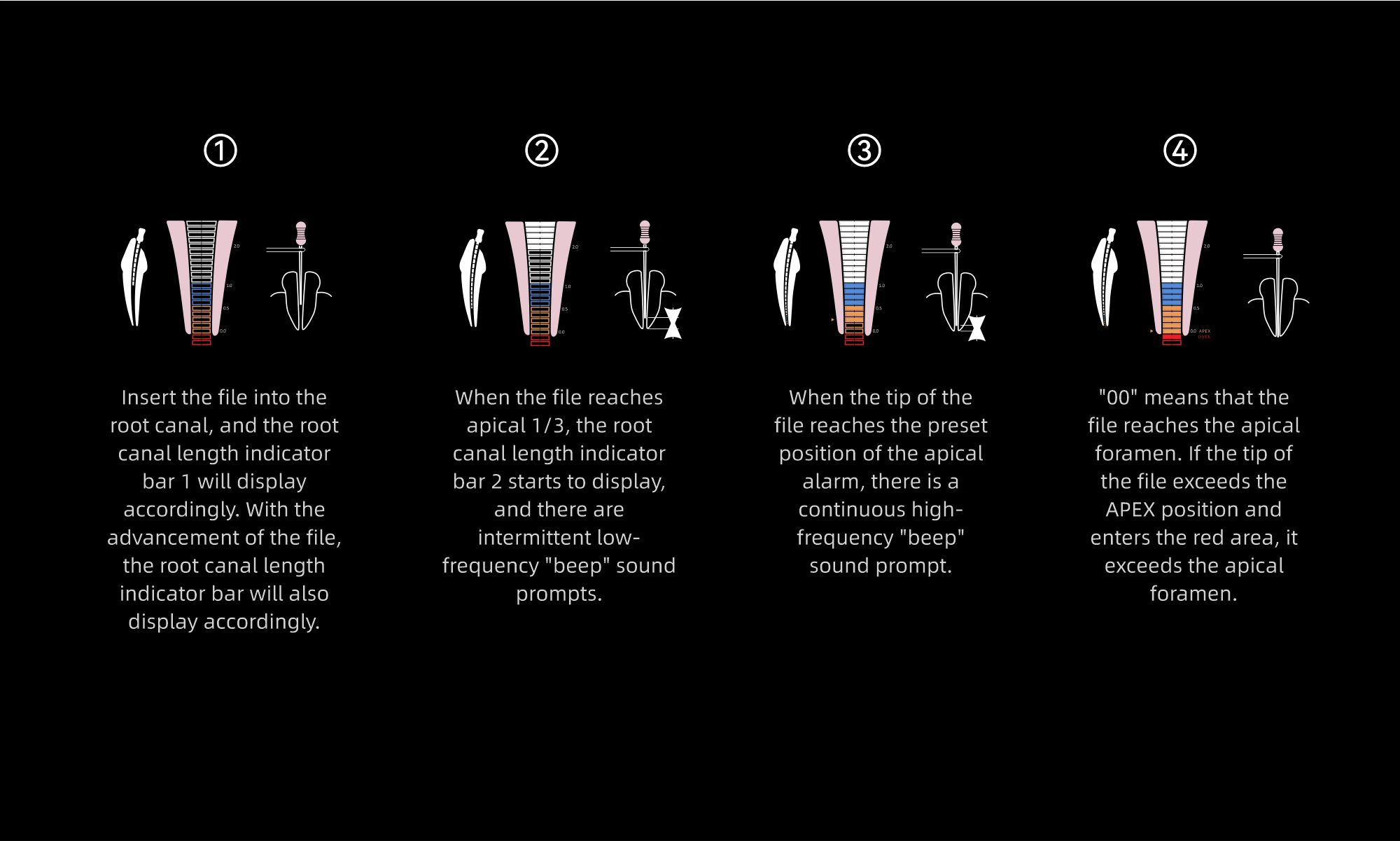

• Insert the file into the root canal,and the root canal length indicator strip 1 will display accordingly.
• With the advancement of the file,the root canal length indicator bar will also display accordingly.
• When the file reaches apical 1/3,the root canal length indicator strip 2 starts to display, and there are intermittent low-frequency "beep "sound prompts.
• When the tip of the file reaches the preset position of the apex stop,there is a continuous high-frequency "beep" sound prompt.
• "00" means that the file reaching the apical hole. If the tip of the file exceeds the APEX position and enters the red area, it exceeds theapical foramen.

Simple

Clear view and sound

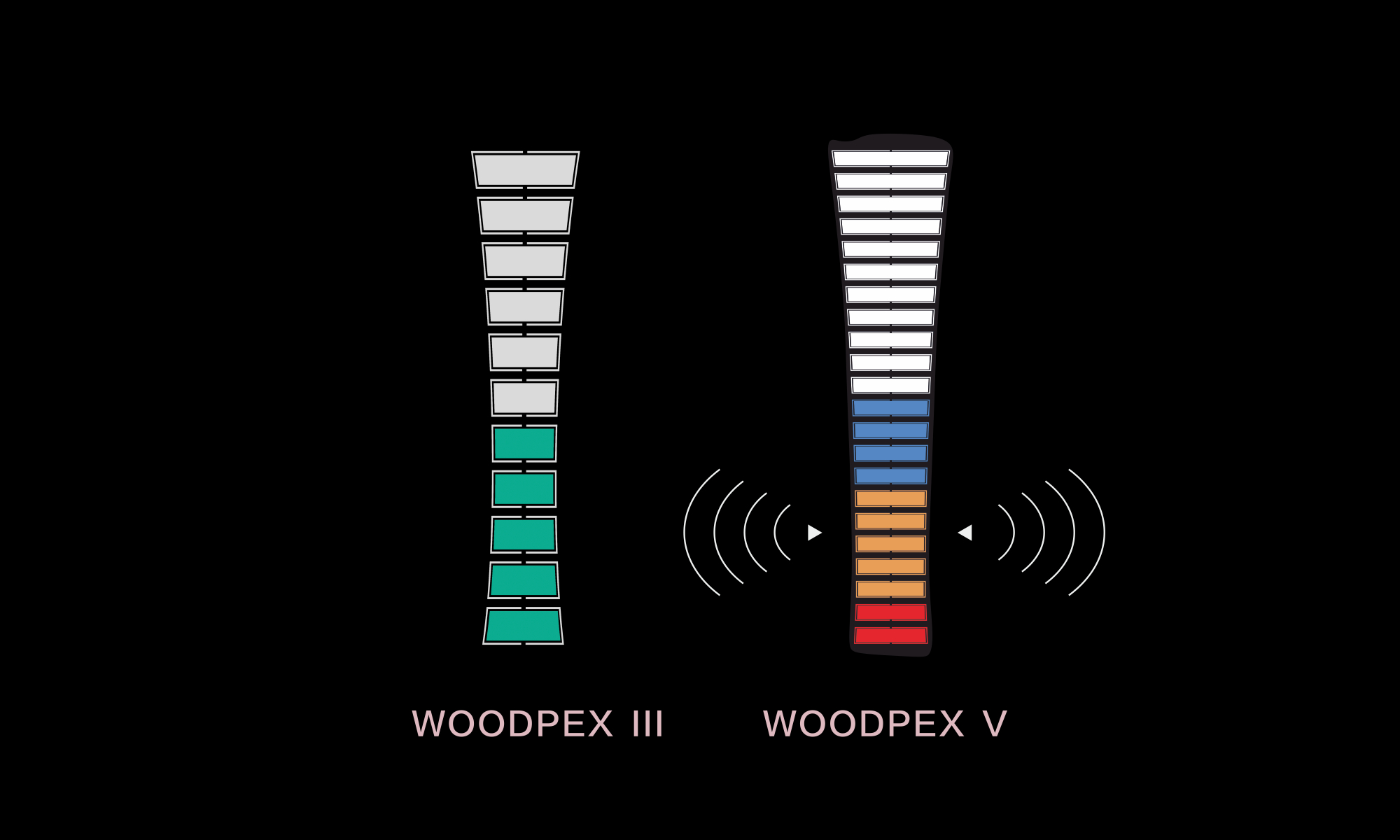

• Zoom in on the apical 1/3 narrow part.
• Subdivision from 11-19.
• More accurate and intuitive measurement trajectory, effectively preventing perforation.
• When the file is less than 2mm from the apical foramen, there will be intermittent low-frequency beeps prompt.
• When the file approaches the apical foramen, the sound gradually rushed.
• When the file reaching the preset position of the apex, there will be continuous high-frequency beeps prompt.
• The sound level can be adjusted, and the position can be distinguished by sound,making measurement easier.

Apical stop setting

• Add the apical stop alarm function.
• The alarm position can be adjusted freely according to clinical needs.
• Flexible setting, timely remind to measure distance.
• Reposition the display location of 0.5mm from the apical foramen.

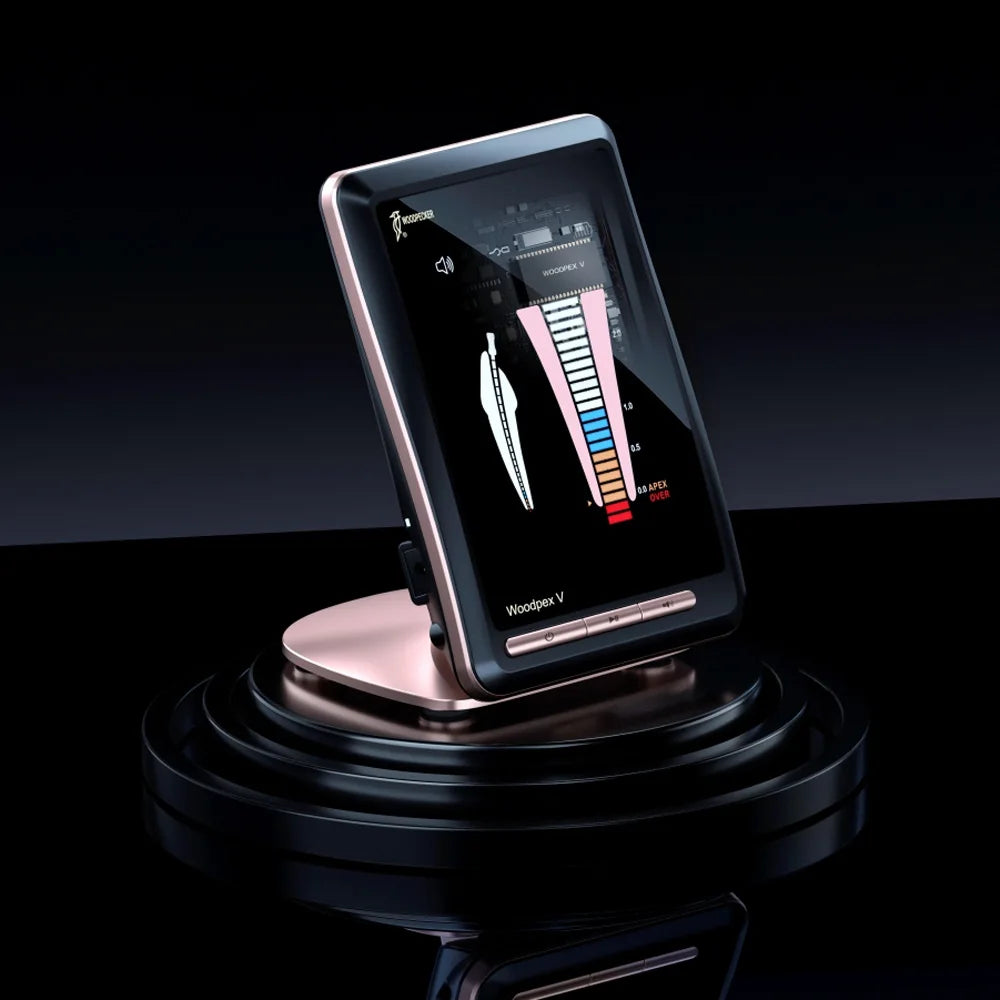

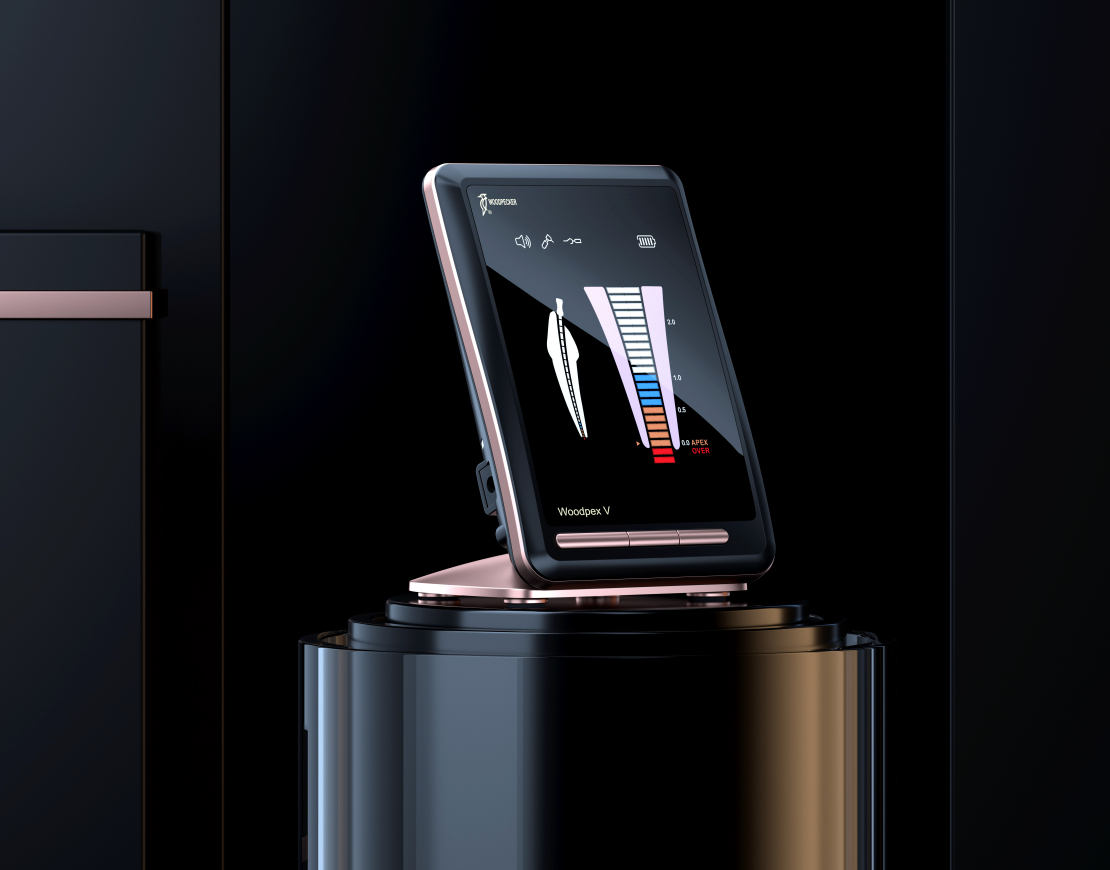

Black gold love at first sight

• Optimized and upgraded LCD display enables brighter color
• The light source is evenly distributed without glare
• Charming appearance of mysterious dark and the rosy gold

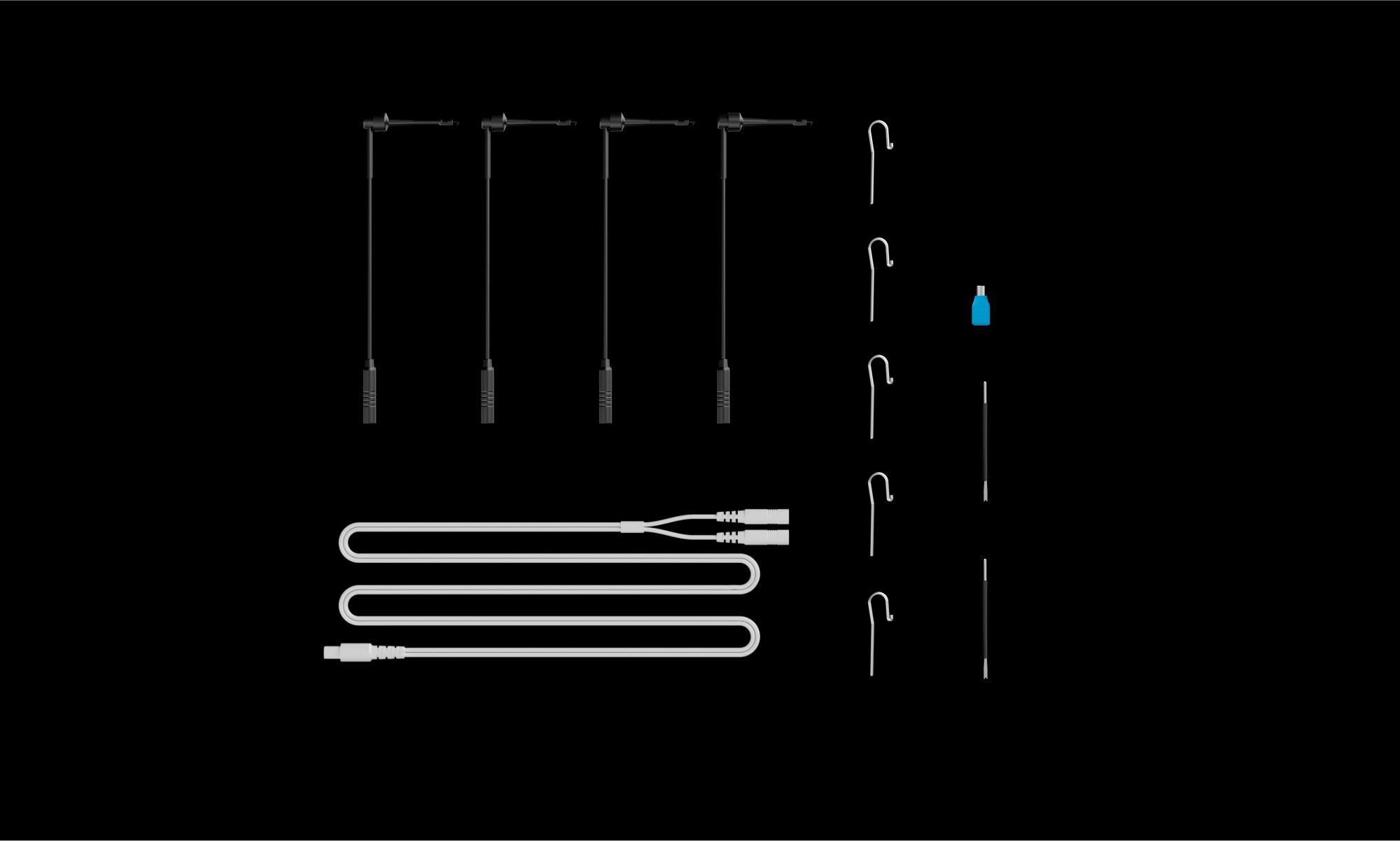

Multi- configuration

• Fileclip X 4
• Lip hook X 5
• Probing X 2
